DORMER R5205/16 Carbide Drills

Product Code: R5205/16

$157.49$143.17 Ex. GST

Product Code: R5205/16 SKU R5205/16 Categories 04 - SC Drills, CUTTING TOOLS (HSS & Carbide), Drilling

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

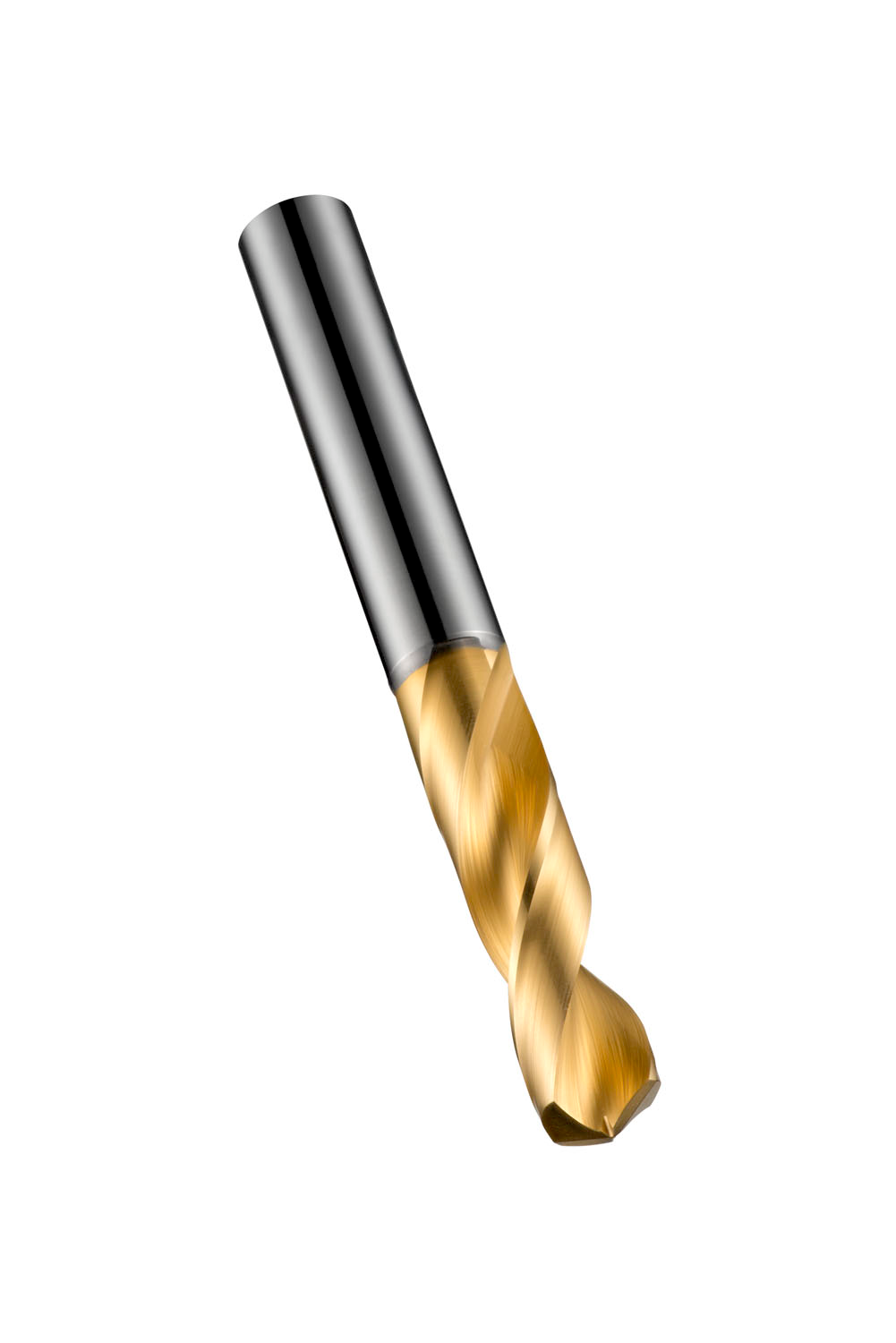

High-performance CDX drill with straight shank, diameter 0.3126″ (5/16) with an overall length of 79mm and flute length of 37mm according to DIN 6539 standard with 130° 4-facet volute point, solid carbide with TiN coating for 2.5xD drilling without pecking in steel, cast iron and non-ferrous material

Additional information

Weight	0.1529 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 7320760210789 Product number (SAP): 86019892 Ordering code ANSI: R5205/16 Product Line: CDX Gross weight: 50 g Cutting diameter (DC): 7.94 mm / 0.3126 inch Length chip flute (LCF): 37 mm / 1.4567 inch Overall length (OAL): 79 mm Connection diameter (DCON MS): 7.94 mm ISO: R5205/16
