DORMER R5206.5 Carbide Drills

Product Code: R5206.5

$142.76$129.78 Ex. GST

Product Code: R5206.5 SKU R5206.5 Categories 04 - SC Drills, CUTTING TOOLS (HSS & Carbide), Drilling

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

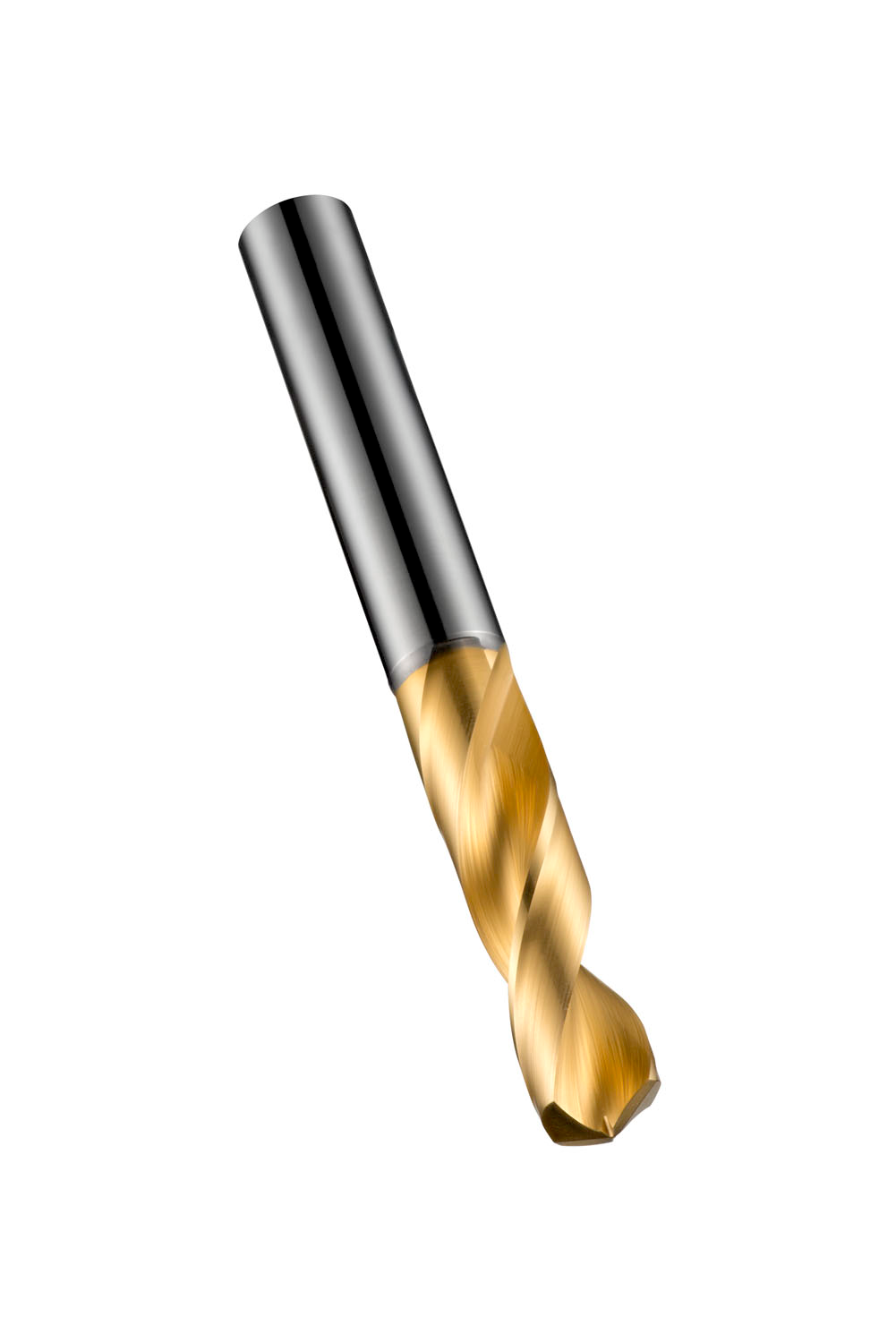

High-performance CDX drill with straight shank, diameter 6.5mm with an overall length of 70mm and flute length of 31mm according to DIN 6539 standard with 130° 4-facet volute point, solid carbide with TiN coating for 2.5xD drilling without pecking in steel, cast iron and non-ferrous material

Additional information

Weight	0.1386 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 7320760116418 Product number (SAP): 86019900 Ordering code ANSI: R5206.5 Product Line: CDX Gross weight: 30.9 g Cutting diameter (DC): 6.5 mm / 0.2559 inch Length chip flute (LCF): 31 mm / 1.2205 inch Overall length (OAL): 70 mm Connection diameter (DCON MS): 6.5 mm ISO: R5206.5
