DORMER R5207.1 Carbide Drills

Product Code: R5207.1

$154.09$140.08 Ex. GST

Product Code: R5207.1 SKU R5207.1 Categories 04 - SC Drills, CUTTING TOOLS (HSS & Carbide), Drilling

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

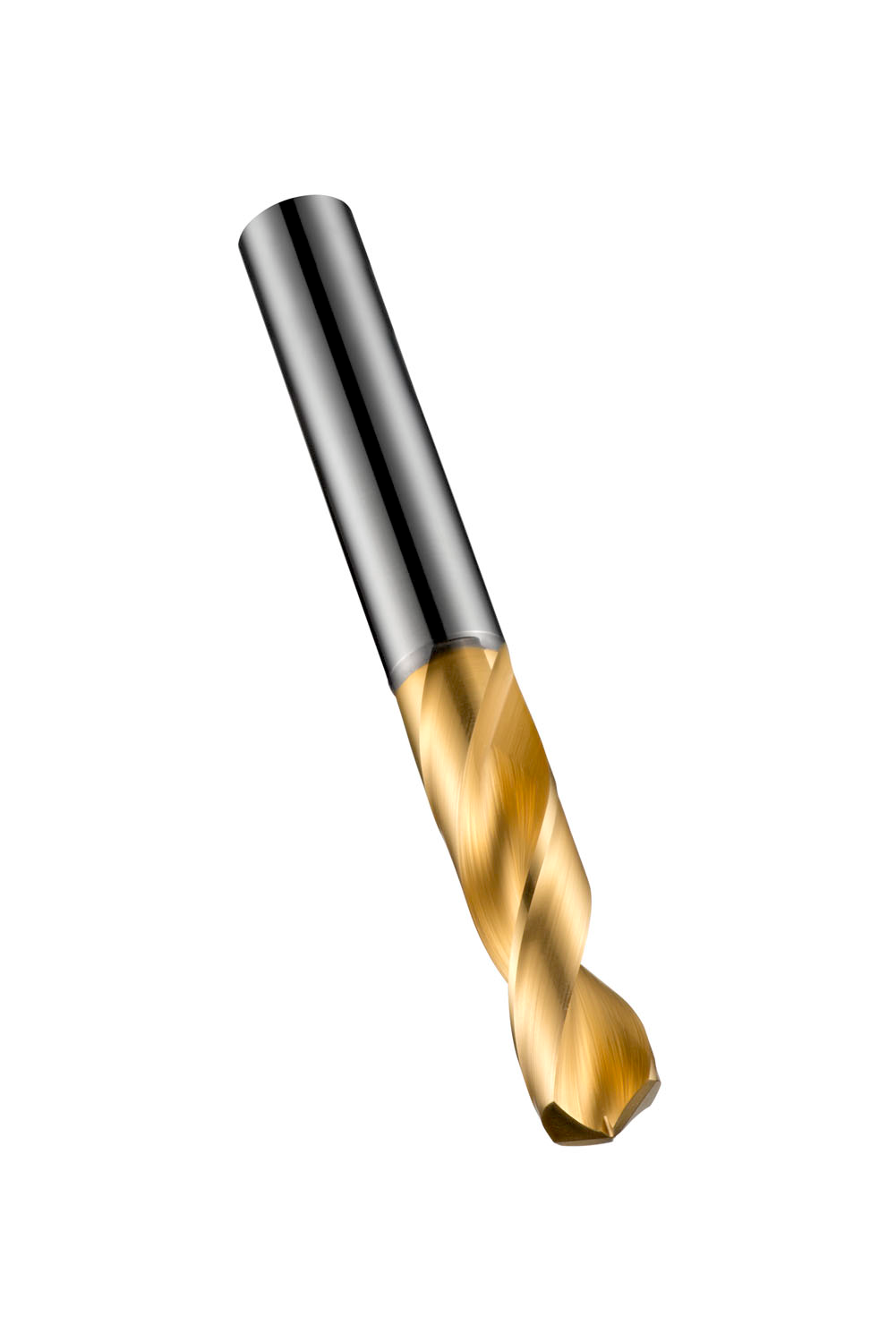

High-performance CDX drill with straight shank, diameter 7.1mm with an overall length of 74mm and flute length of 34mm according to DIN 6539 standard with 130° 4-facet volute point, solid carbide with TiN coating for 2.5xD drilling without pecking in steel, cast iron and non-ferrous material

Additional information

Weight	0.1496 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 7320760346426 Product number (SAP): 86019906 Ordering code ANSI: R5207.1 Product Line: CDX Gross weight: 36 g Cutting diameter (DC): 7.1 mm / 0.2795 inch Length chip flute (LCF): 34 mm / 1.3386 inch Overall length (OAL): 74 mm Connection diameter (DCON MS): 7.1 mm ISO: R5207.1
