DORMER R5209.0 Carbide Drills

Product Code: R5209.0

$181.28$164.80 Ex. GST

Product Code: R5209.0 SKU R5209.0 Categories , ,
DORMER R5209.0 Carbide Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

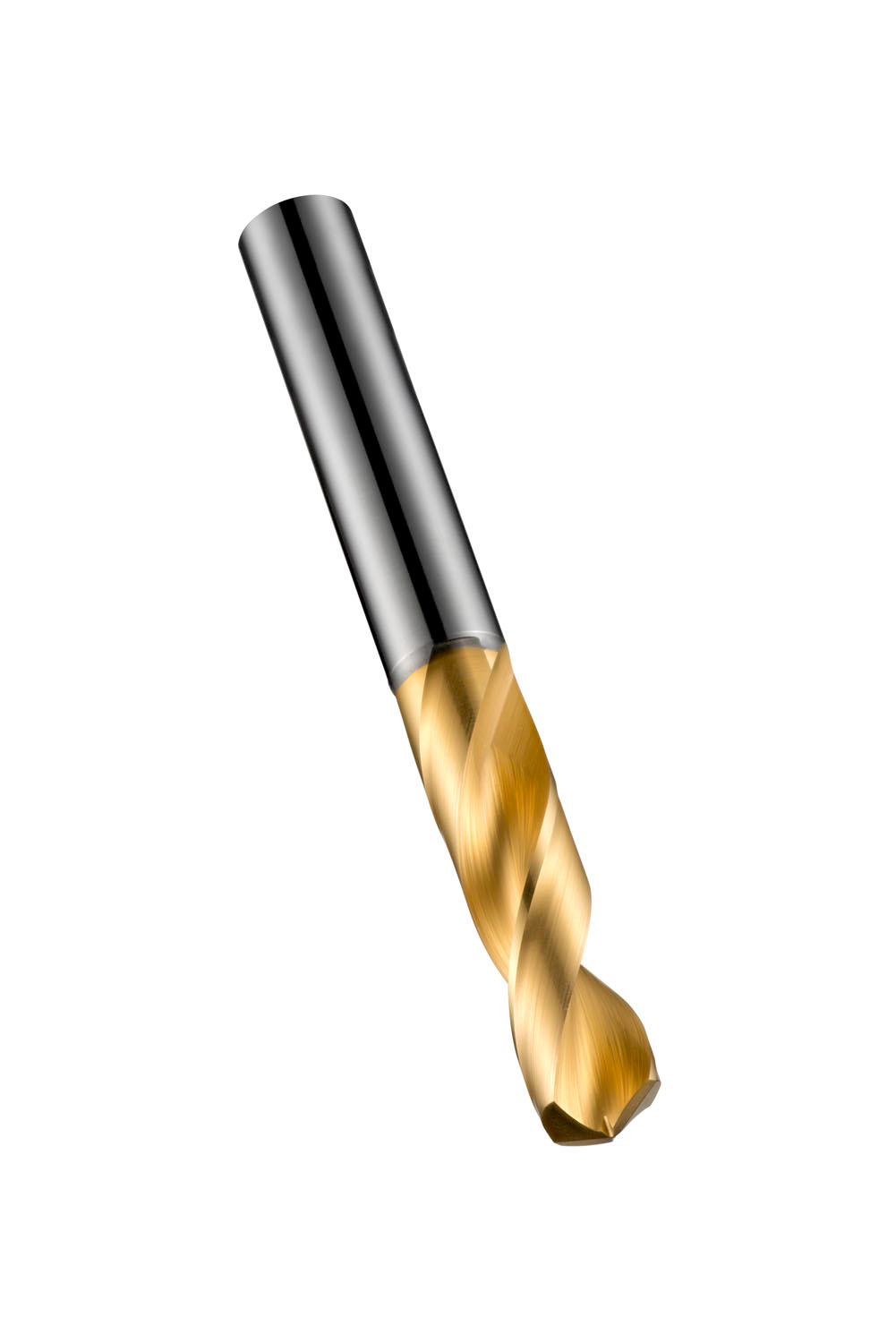

High-performance CDX drill with straight shank, diameter 9mm with an overall length of 84mm and flute length of 40mm according to DIN 6539 standard with 130° 4-facet volute point, solid carbide with TiN coating for 2.5xD drilling without pecking in steel, cast iron and non-ferrous material

Additional information

Weight 0.1760 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760116517
Product number (SAP): 86019927
Ordering code ANSI: R5209.0
Product Line: CDX
Gross weight – grams: 67.8
Cutting diameter – millimeter (DC): 9 mm
Cutting diameter – inch (DC): 0.3543 inch
Length chip flute – millimeter (LCF): 40 mm
Overall length – millimeter (OAL): 84 mm
Connection diameter – millimeter (DCON MS): 9 mm
Length chip flute – inch (LCF): 1.5748 inch
ISO: R5209.0

Brand

DORMER
