DORMER S1081 Carbide Cutters

Product Code: S1081

$510.98$464.53 Ex. GST

Product Code: S1081 SKU S1081 Categories , ,
DORMER S1081 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

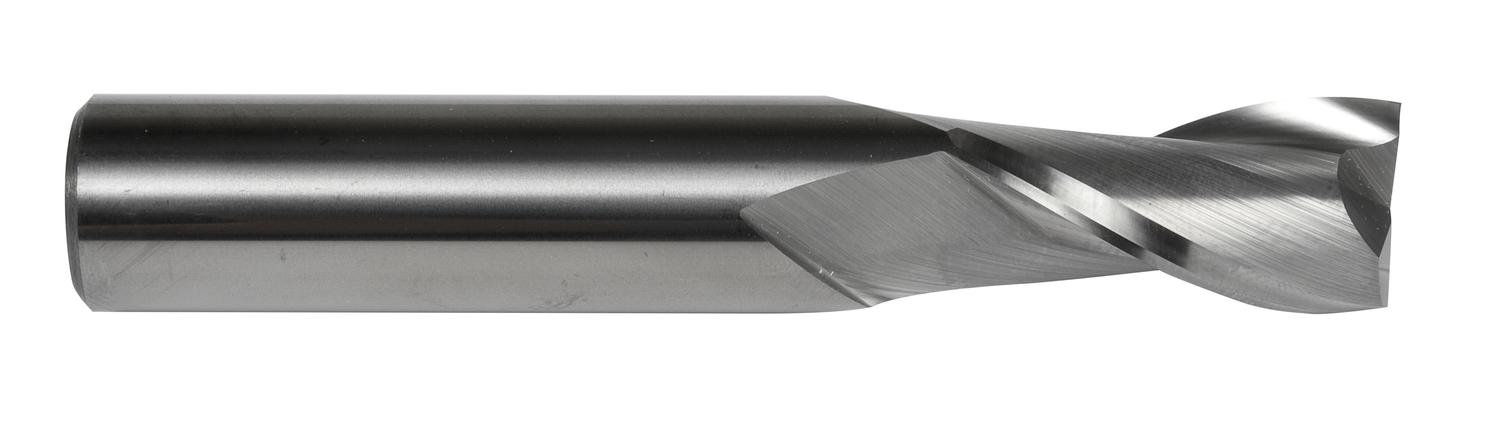

Regular length end mill with 2 flutes, diameter 1″ with 1.1/2″ length of cut and 4″ overall length, according to DORMER standard with a 1″ plain shank, solid carbide with bright finish, 30° helix for slot milling in steel and cast steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.4961 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760845905
Product number (SAP): 86035833
Ordering code ANSI: S1081
Gross weight – grams: 576
Connection diameter – fractional inch (DCON MS): 1"
Connection diameter – millimeter (DCON MS): 25.4 mm
Cutting diameter – fractional inch (DC): 1"
Cutting diameter – millimeter (DC): 25.4 mm
Depth of cut maximum – fractional inch (APMX): 1.1/2
Overall length – fractional inch (OAL): 4"
Overall length – millimeter (OAL): 101.6 mm
ISO: S1081

Brand

DORMER
