DORMER S1085/8 Carbide Cutters

Product Code: S1085/8

$224.33$203.94 Ex. GST

Product Code: S1085/8 SKU S1085/8 Categories , ,
DORMER S1085/8 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

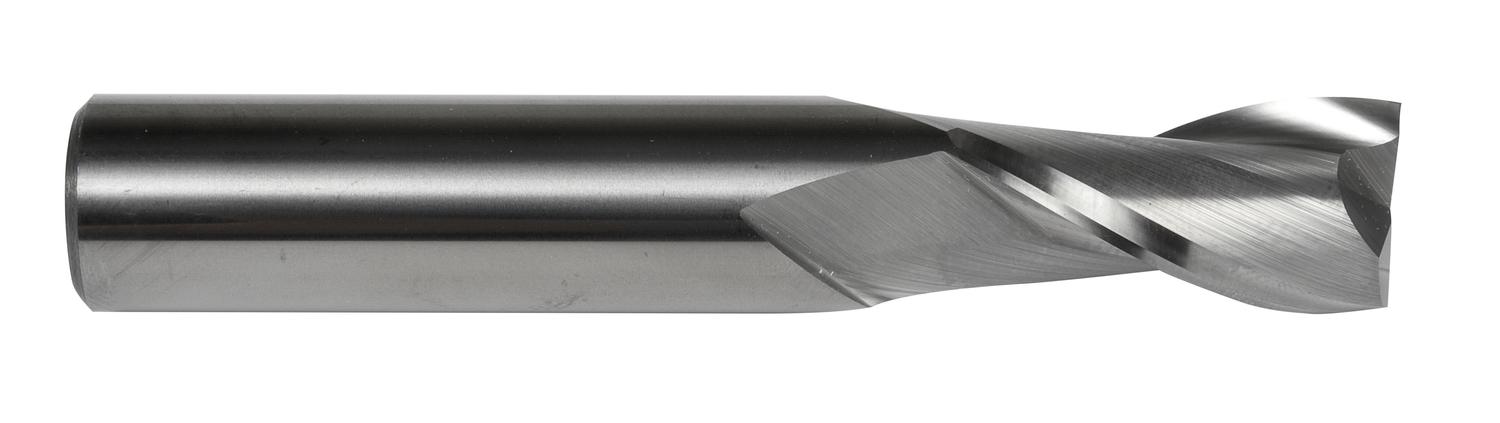

Regular length end mill with 2 flutes, diameter 5/8″ with 1.1/4″ length of cut and 3.1/2″ overall length, according to DORMER standard with a 5/8″ plain shank, solid carbide with bright finish, 30° helix for slot milling in steel and cast steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.2178 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760845882
Product number (SAP): 86035831
Ordering code ANSI: S1085/8
Gross weight – grams: 207
Connection diameter – fractional inch (DCON MS): 5/8
Connection diameter – millimeter (DCON MS): 15.88 mm
Cutting diameter – fractional inch (DC): 5/8
Cutting diameter – millimeter (DC): 15.88 mm
Depth of cut maximum – fractional inch (APMX): 1.1/4
Overall length – fractional inch (OAL): 3.1/2
Overall length – millimeter (OAL): 88.9 mm
ISO: S1085/8

Brand

DORMER
