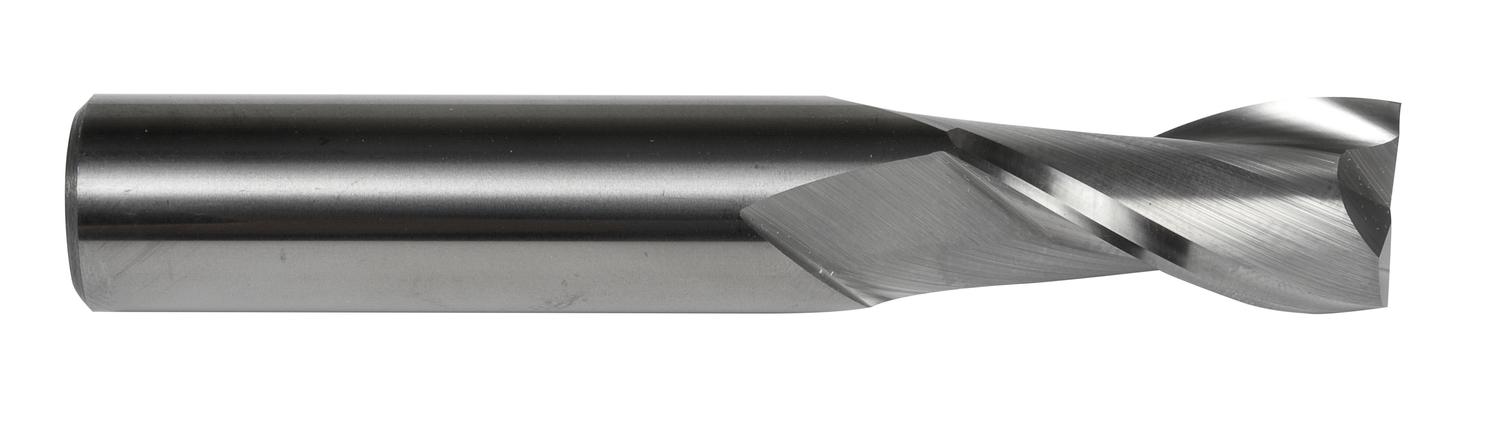

DORMER S1087/32 Carbide Cutters

Description

Regular length end mill with 2 flutes, diameter 7/32″ with 5/8″ length of cut and 2.1/2″ overall length, according to DORMER standard with a 1/4″ plain shank, solid carbide with bright finish, 30° helix for slot milling in steel and cast steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight	0.0462 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 7320760845813 Product number (SAP): 86035824 Ordering code ANSI: S1087/32 Gross weight – grams: 18 With Neck: Yes Connection diameter – fractional inch (DCON MS): 1/4 Connection diameter – millimeter (DCON MS): 6.35 mm Cutting diameter – fractional inch (DC): 7/32 Cutting diameter – millimeter (DC): 5.56 mm Depth of cut maximum – fractional inch (APMX): 5/8 Overall length – fractional inch (OAL): 2.1/2 Overall length – millimeter (OAL): 63.5 mm ISO: S1087/32

Need Technical Advice?

Description

Additional information

Brand

DORMER
