DORMER S1089/64 Carbide Cutters

Product Code: S1089/64

$39.09$35.54 Ex. GST

Product Code: S1089/64 SKU S1089/64 Categories , ,
DORMER S1089/64 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

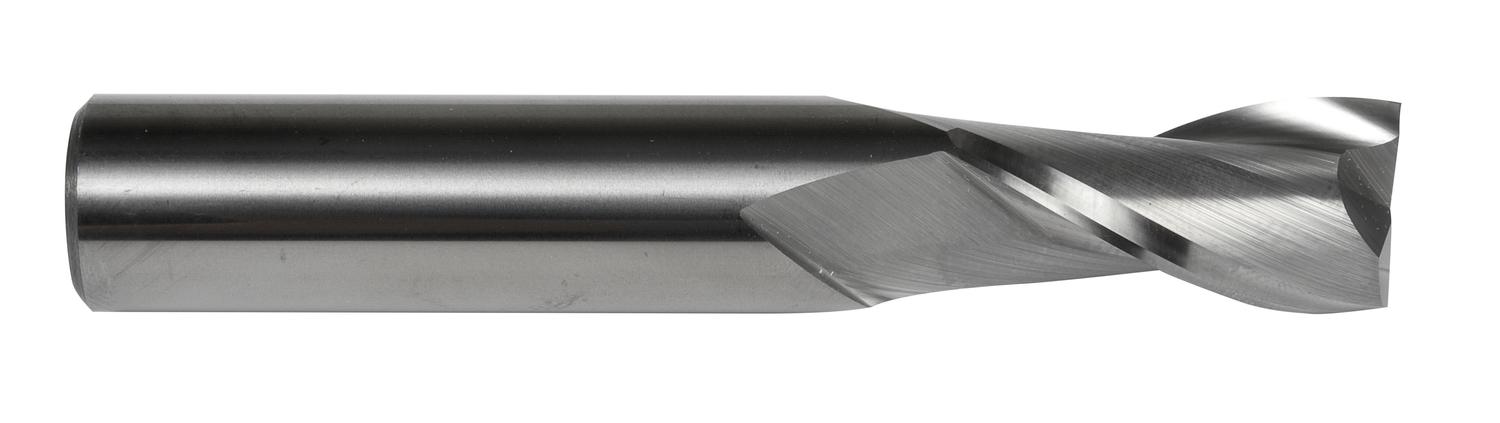

Regular length end mill with 2 flutes, diameter 9/64″ with 9/16″ length of cut and 2″ overall length, according to DORMER standard with a 3/16″ plain shank, solid carbide with bright finish, 30° helix for slot milling in steel and cast steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.038 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760845776
Product number (SAP): 86035820
Ordering code ANSI: S1089/64
Gross weight – grams: 9
With Neck: Yes
Connection diameter – fractional inch (DCON MS): 3/16
Connection diameter – millimeter (DCON MS): 4.76 mm
Cutting diameter – fractional inch (DC): 9/64
Cutting diameter – millimeter (DC): 3.57 mm
Depth of cut maximum – fractional inch (APMX): 9/16
Overall length – fractional inch (OAL): 2"
Overall length – millimeter (OAL): 50.8 mm
ISO: S1089/64

Brand

DORMER
