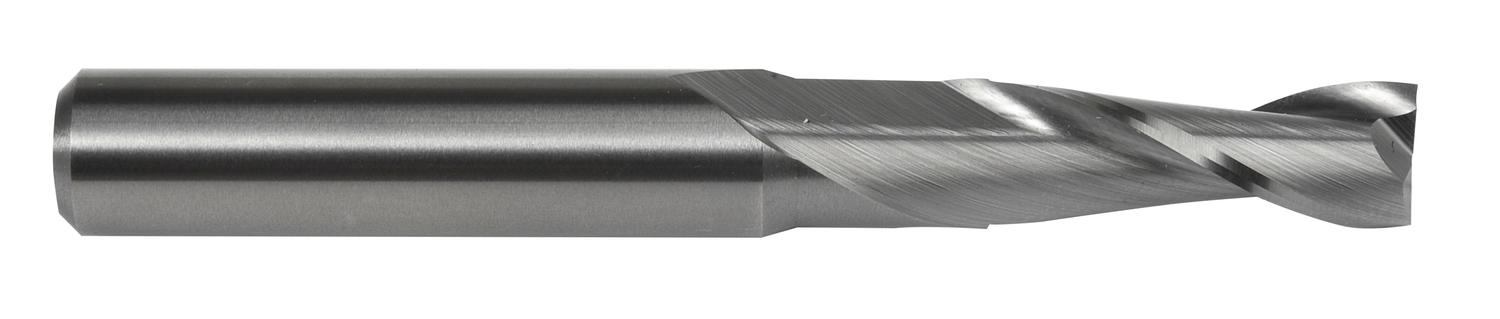

DORMER S1099.0 Carbide Cutters

Product Code: S1099.0

$81.58$74.16 Ex. GST

Product Code: S1099.0 SKU S1099.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Regular length end mill with 2 flutes, diameter 9mm with 22mm length of cut and 70mm overall length, according to DORMER standard with a 10mm plain shank, solid carbide with bright finish, 30° helix for slot milling in steel and cast steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.0792 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760846148
Product number (SAP): 86035857
Ordering code ANSI: S1099.0
Gross weight – grams: 64
With Neck: Yes
Connection diameter – millimeter (DCON MS): 10 mm
Cutting diameter – millimeter (DC): 9 mm
Depth of cut maximum – millimeter (APMX): 22 mm
Overall length – millimeter (OAL): 70 mm
ISO: S1099.0

Brand

DORMER
