DORMER S1103/16 Carbide Cutters

Product Code: S1103/16

$62.89$57.17 Ex. GST

Product Code: S1103/16 SKU S1103/16 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

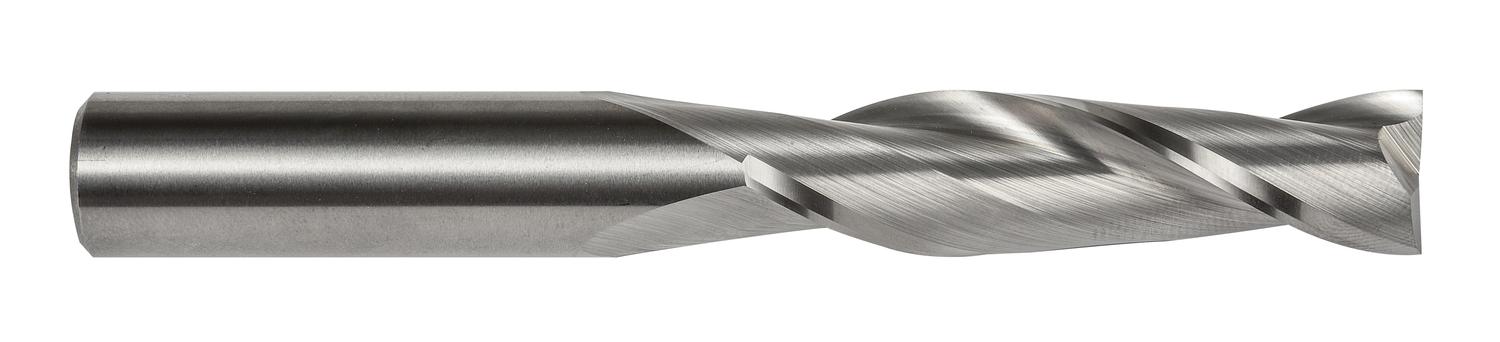

Long series end mill with 2 flutes, diameter 3/16″ with 3/4″ length of cut and 2.1/2″ overall length, according to DORMER standard with a 3/16″ plain shank, solid carbide with bright finish, 30° helix for slot milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.0611 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760846230
Product number (SAP): 86035866
Ordering code ANSI: S1103/16
Gross weight – grams: 0.02
Connection diameter – fractional inch (DCON MS): 3/16
Connection diameter – millimeter (DCON MS): 4.76 mm
Cutting diameter – fractional inch (DC): 3/16
Cutting diameter – millimeter (DC): 4.76 mm
Depth of cut maximum – fractional inch (APMX): 3/4
Overall length – fractional inch (OAL): 2.1/2
Overall length – millimeter (OAL): 63.5 mm
ISO: S1103/16

Brand

DORMER
