DORMER S1111/4 Carbide Cutters

Product Code: S1111/4

$74.22$67.47 Ex. GST

Product Code: S1111/4 SKU S1111/4 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

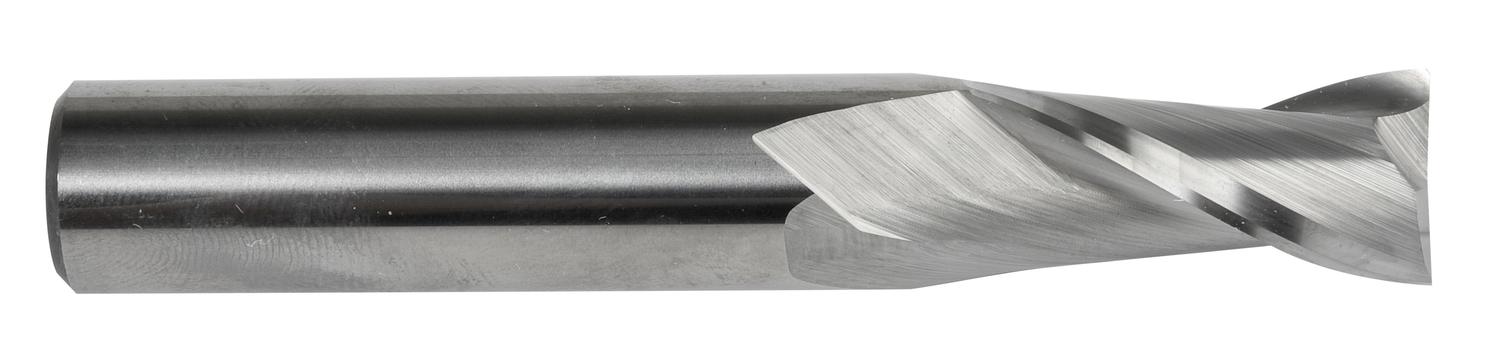

Extra long series end mill with 2 flutes, diameter 1/4″ with 1.1/2″ length of cut and 4″ overall length, according to DORMER standard with a 1/4″ plain shank, solid carbide with bright finish, 30° helix for slot milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.0721 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760846292
Product number (SAP): 86035872
Ordering code ANSI: S1111/4
Gross weight – grams: 40
Connection diameter – fractional inch (DCON MS): 1/4
Connection diameter – millimeter (DCON MS): 6.35 mm
Cutting diameter – fractional inch (DC): 1/4
Cutting diameter – millimeter (DC): 6.35 mm
Depth of cut maximum – fractional inch (APMX): 1.1/2
Overall length – fractional inch (OAL): 4"
Overall length – millimeter (OAL): 101.6 mm
ISO: S1111/4

Brand

DORMER
