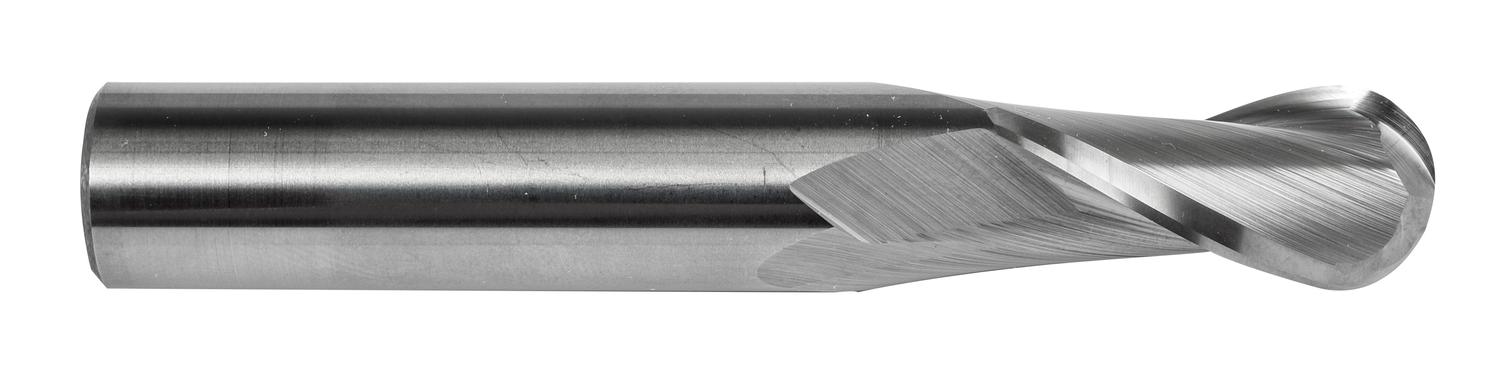

DORMER S1121/16 Carbide Cutters

Product Code: S1121/16

$36.03$32.75 Ex. GST

Product Code: S1121/16 SKU S1121/16 Categories , ,
DORMER S1121/16 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Regular length ball-nose end mill with 2 flutes, diameter 1/16″ with 1/4″ length of cut, 1.1/2″ overall length and 1/32″ full profile radius, according to DORMER standard with a 1/8″ plain shank, solid carbide with bright finish, 30° helix for copy milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.035 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760846384
Product number (SAP): 86035881
Ordering code ANSI: S1121/16
Gross weight – grams: 7
With Neck: Yes
Connection diameter – fractional inch (DCON MS): 1/8
Connection diameter – millimeter (DCON MS): 3.18 mm
Cutting diameter – fractional inch (DC): 1/16
Cutting diameter – millimeter (DC): 1.59 mm
Depth of cut maximum – fractional inch (APMX): 1/4
Overall length – fractional inch (OAL): 1.1/2
Overall length – millimeter (OAL): 38.1 mm
ISO: S1121/16

Brand

DORMER
