DORMER S11316.0 Carbide Cutters

Product Code: S11316.0

$273.05$248.23 Ex. GST

Product Code: S11316.0 SKU S11316.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

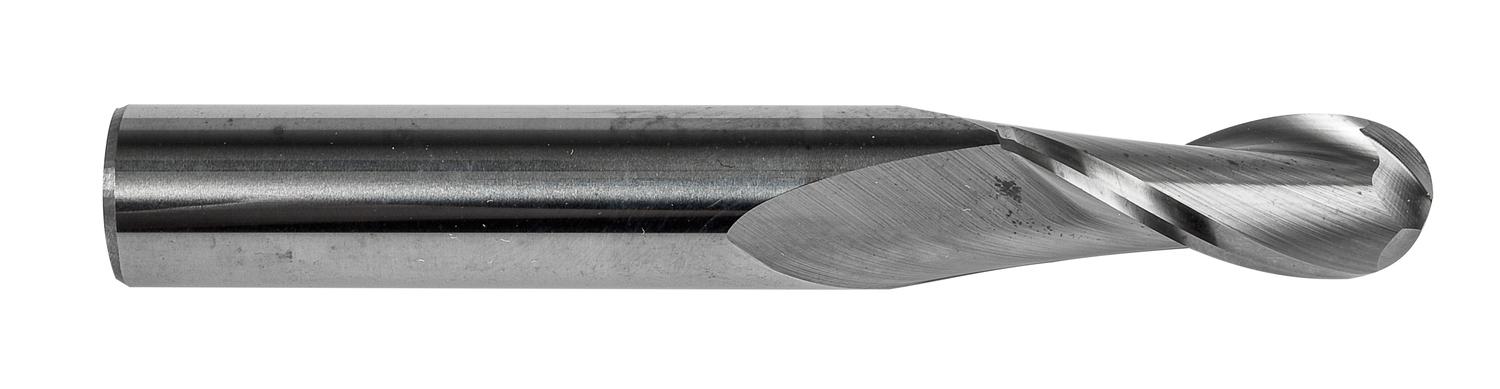

Regular length ball-nose end mill with 2 flutes, diameter 16mm with 32mm length of cut, 88mm overall length and 8mm full profile radius, according to DORMER standard with a 16mm plain shank, solid carbide with bright finish, 30° helix for copy milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.2651 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760846674
Product number (SAP): 86035910
Ordering code ANSI: S11316.0
Gross weight – grams: 215
Connection diameter – millimeter (DCON MS): 16 mm
Cutting diameter – millimeter (DC): 16 mm
Depth of cut maximum – millimeter (APMX): 32 mm
Overall length – millimeter (OAL): 88 mm
ISO: S11316.0

Brand

DORMER
