DORMER S1139.0 Carbide Cutters

Product Code: S1139.0

$93.48$84.98 Ex. GST

Product Code: S1139.0 SKU S1139.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

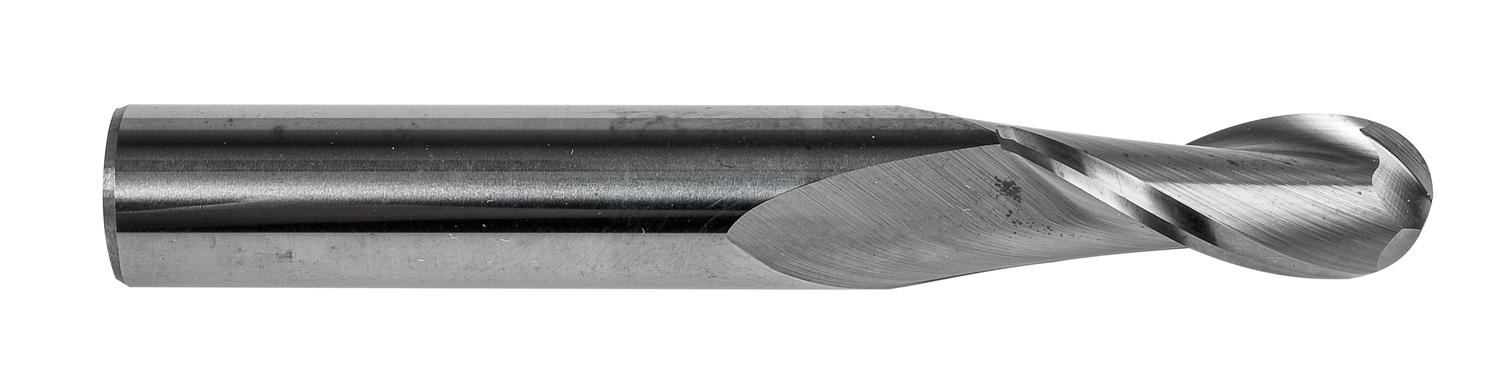

Regular length ball-nose end mill with 2 flutes, diameter 9mm with 22mm length of cut, 70mm overall length and 4.5mm full profile radius, according to DORMER standard with a 10mm plain shank, solid carbide with bright finish, 30° helix for copy milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.0908 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760846643
Product number (SAP): 86035907
Ordering code ANSI: S1139.0
Gross weight – grams: 63
With Neck: Yes
Connection diameter – millimeter (DCON MS): 10 mm
Cutting diameter – millimeter (DC): 9 mm
Depth of cut maximum – millimeter (APMX): 22 mm
Overall length – millimeter (OAL): 70 mm
ISO: S1139.0

Brand

DORMER
