DORMER S1141/2 Carbide Cutters

Product Code: S1141/2

$145.02$131.84 Ex. GST

Product Code: S1141/2 SKU S1141/2 Categories , ,
DORMER S1141/2 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

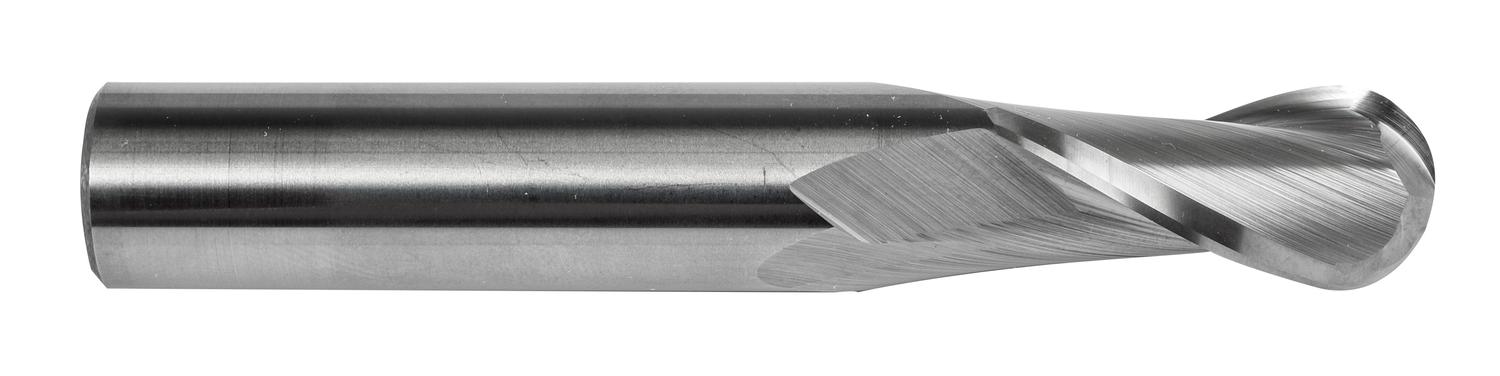

Long series ball-nose end mill with 2 flutes, diameter 1/2″ with 2″ length of cut, 4″ overall length and 1/4″ full profile radius, according to DORMER standard with a 1/2″ plain shank, solid carbide with bright finish, 30° helix for copy milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.1408 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760846834
Product number (SAP): 86035926
Ordering code ANSI: S1141/2
Gross weight – grams: 28
Connection diameter – fractional inch (DCON MS): 1/2
Connection diameter – millimeter (DCON MS): 12.7 mm
Cutting diameter – fractional inch (DC): 1/2
Cutting diameter – millimeter (DC): 12.7 mm
Depth of cut maximum – fractional inch (APMX): 2"
Overall length – fractional inch (OAL): 4"
Overall length – millimeter (OAL): 101.6 mm
ISO: S1141/2

Brand

DORMER
