DORMER S1141/8 Carbide Cutters

Product Code: S1141/8

$51.67$46.97 Ex. GST

Product Code: S1141/8 SKU S1141/8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

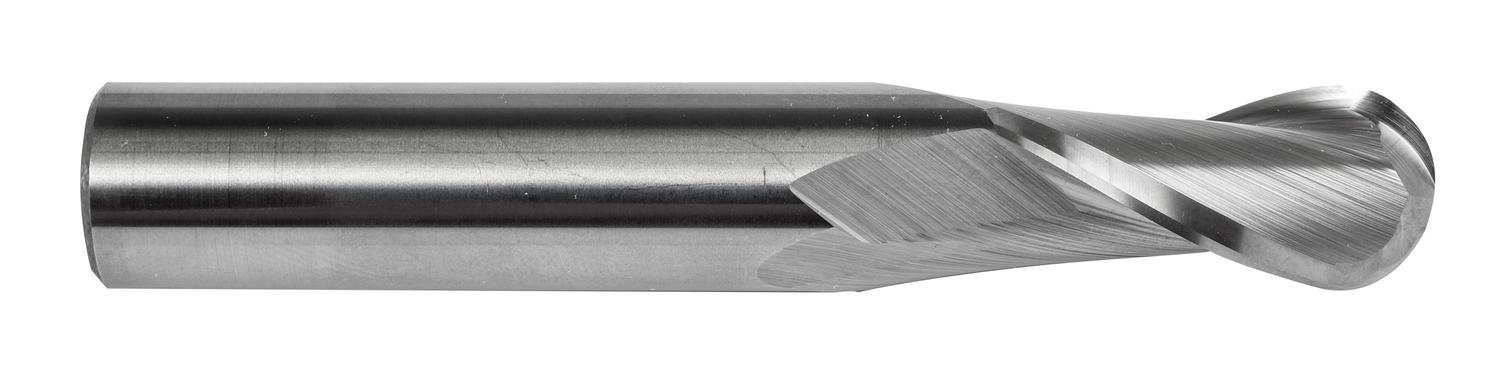

Long series ball-nose end mill with 2 flutes, diameter 1/8″ with 3/4″ length of cut, 2″ overall length and 1/16″ full profile radius, according to DORMER standard with a 1/8″ plain shank, solid carbide with bright finish, 30° helix for copy milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.0502 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760846780
Product number (SAP): 86035921
Ordering code ANSI: S1141/8
Gross weight – grams: 7
Connection diameter – fractional inch (DCON MS): 1/8
Connection diameter – millimeter (DCON MS): 3.18 mm
Cutting diameter – fractional inch (DC): 1/8
Cutting diameter – millimeter (DC): 3.18 mm
Depth of cut maximum – fractional inch (APMX): 3/4
Overall length – fractional inch (OAL): 2"
Overall length – millimeter (OAL): 50.8 mm
ISO: S1141/8

Brand

DORMER
