DORMER S1145/16 Carbide Cutters

Product Code: S1145/16

$110.47$100.43 Ex. GST

Product Code: S1145/16 SKU S1145/16 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

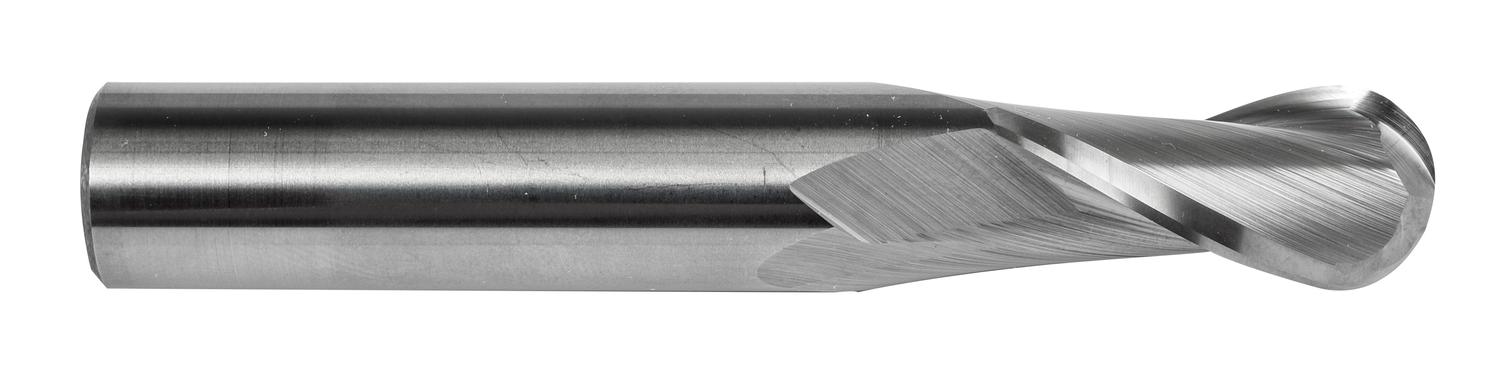

Long series ball-nose end mill with 2 flutes, diameter 5/16″ with 1.1/8″ length of cut, 3″ overall length and 5/32″ full profile radius, according to DORMER standard with a 5/16″ plain shank, solid carbide with bright finish, 30° helix for copy milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.1073 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760846810
Product number (SAP): 86035924
Ordering code ANSI: S1145/16
Gross weight – grams: 45
Connection diameter – fractional inch (DCON MS): 5/16
Connection diameter – millimeter (DCON MS): 7.94 mm
Cutting diameter – fractional inch (DC): 5/16
Cutting diameter – millimeter (DC): 7.94 mm
Depth of cut maximum – fractional inch (APMX): 1.1/8
Overall length – fractional inch (OAL): 3"
Overall length – millimeter (OAL): 76.2 mm
ISO: S1145/16

Brand

DORMER
