DORMER S1161/4 Carbide Cutters

Product Code: S1161/4

$93.48$84.98 Ex. GST

Product Code: S1161/4 SKU S1161/4 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

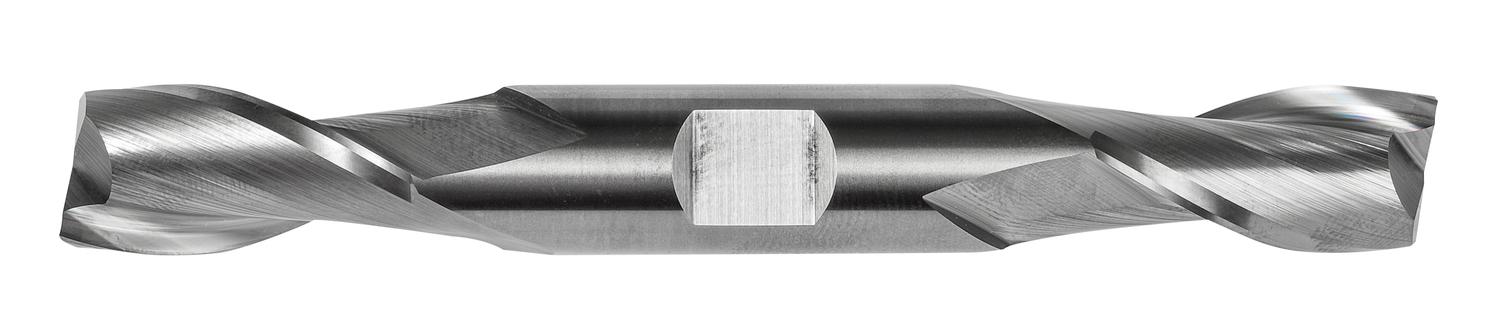

Regular length double ended end mill with 2 flutes, diameter 1/4″ with 5/8″ length of cut and 3″ overall length, according to DORMER standard with a 3/8″ plain shank, solid carbide with bright finish, 30° helix for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and austenitic stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.0908 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760847008
Product number (SAP): 86035943
Ordering code ANSI: S1161/4
Gross weight – grams: 46
With Neck: Yes
Connection diameter – fractional inch (DCON MS): 3/8
Connection diameter – millimeter (DCON MS): 9.53 mm
Cutting diameter – fractional inch (DC): 1/4
Cutting diameter – millimeter (DC): 6.35 mm
Depth of cut maximum – fractional inch (APMX): 5/8
Overall length – fractional inch (OAL): 3"
Overall length – millimeter (OAL): 76.2 mm
ISO: S1161/4

Brand

DORMER
