DORMER S1293/8 Carbide Cutters

Description

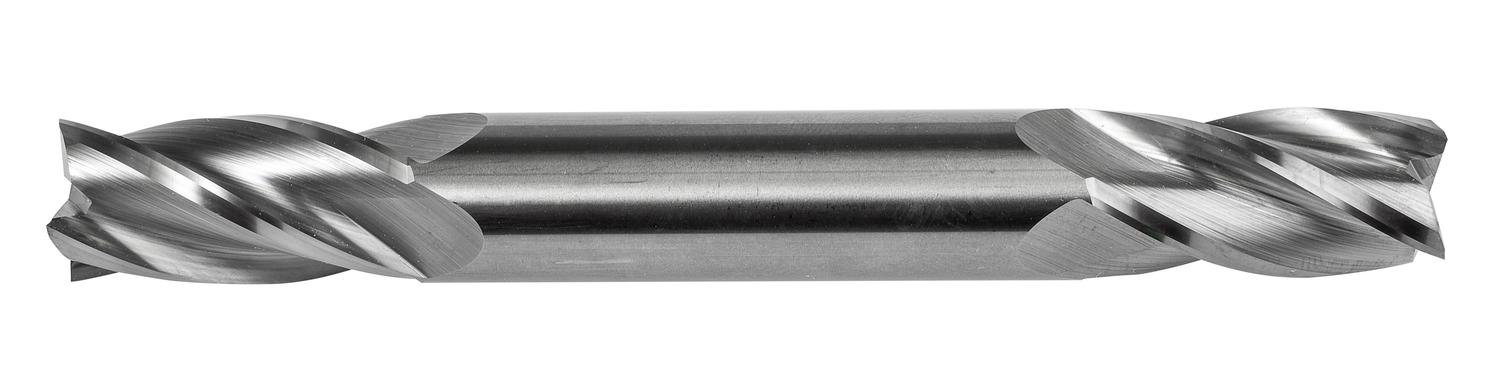

Regular length double ended end mill with 4 flutes, diameter 3/8″ with 3/4″ length of cut and 3.1/2″ overall length, according to DORMER standard with a 3/8″ plain shank, solid carbide with bright finish, 30° helix for shoulder milling and slot milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight	0.1166 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 7320760847718 Product number (SAP): 86036014 Ordering code ANSI: S1293/8 Gross weight – grams: 54 Connection diameter – fractional inch (DCON MS): 3/8 Connection diameter – millimeter (DCON MS): 9.53 mm Cutting diameter – fractional inch (DC): 3/8 Cutting diameter – millimeter (DC): 9.53 mm Depth of cut maximum – fractional inch (APMX): 3/4 Overall length – fractional inch (OAL): 3.1/2 Overall length – millimeter (OAL): 88.9 mm ISO: S1293/8

Need Technical Advice?

Description

Additional information

Brand

DORMER
