DORMER S1295/16 Carbide Cutters

Product Code: S1295/16

$107.07$97.34 Ex. GST

Product Code: S1295/16 SKU S1295/16 Categories , ,
DORMER S1295/16 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

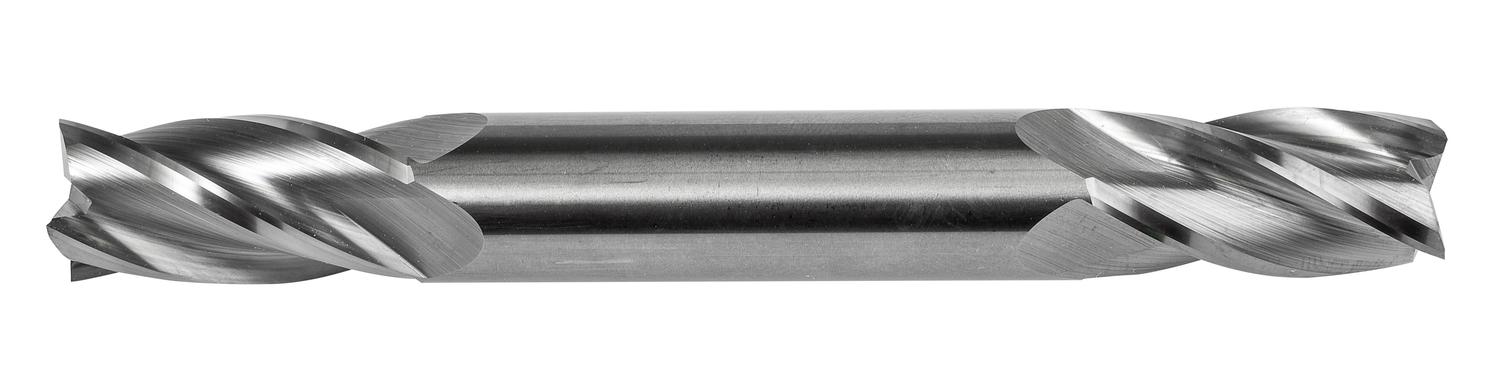

Regular length double ended end mill with 4 flutes, diameter 5/16″ with 3/4″ length of cut and 3.1/2″ overall length, according to DORMER standard with a 3/8″ plain shank, solid carbide with bright finish, 30° helix for shoulder milling and slot milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.104 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760847701
Product number (SAP): 86036013
Ordering code ANSI: S1295/16
Gross weight – grams: 48
Connection diameter – fractional inch (DCON MS): 3/8
Connection diameter – millimeter (DCON MS): 9.53 mm
Cutting diameter – fractional inch (DC): 5/16
Cutting diameter – millimeter (DC): 7.94 mm
Depth of cut maximum – fractional inch (APMX): 3/4
Overall length – fractional inch (OAL): 3.1/2
Overall length – millimeter (OAL): 88.9 mm
ISO: S1295/16

Brand

DORMER
