DORMER S1347/64 Carbide Cutters

Product Code: S1347/64

$28.67$26.06 Ex. GST

Product Code: S1347/64 SKU S1347/64 Categories , ,

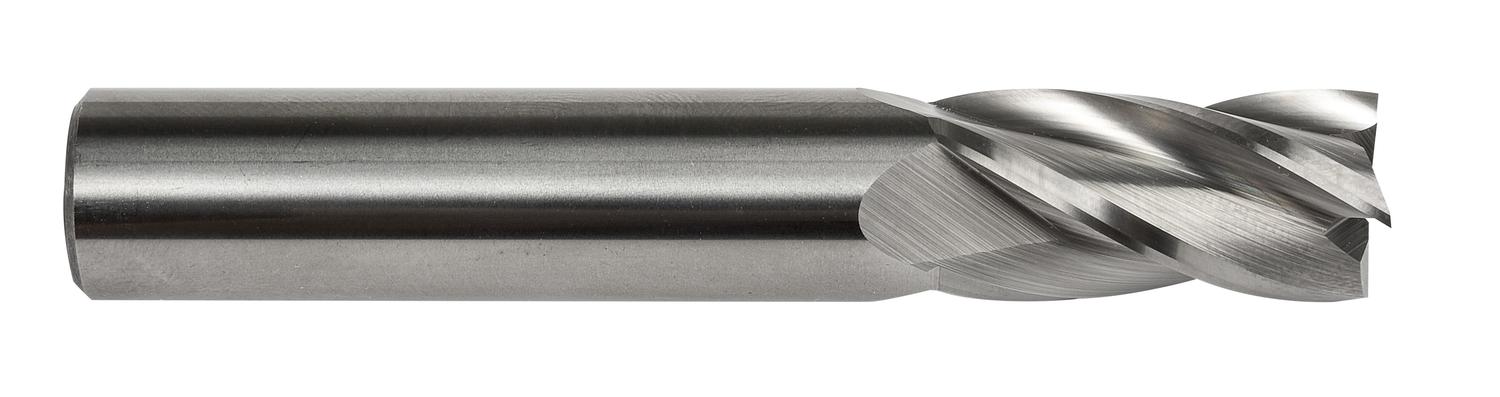

DORMER S1347/64 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Regular length end mill with 4 flutes, diameter 7/64″ with 3/8″ length of cut and 1.1/2″ overall length, according to DORMER standard with a 1/8″ plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.0278 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760847763
Product number (SAP): 86036019
Ordering code ANSI: S1347/64
Gross weight – grams: 4
With Neck: Yes
Connection diameter – fractional inch (DCON MS): 1/8
Connection diameter – millimeter (DCON MS): 3.18 mm
Cutting diameter – fractional inch (DC): 7/64
Cutting diameter – millimeter (DC): 2.78 mm
Depth of cut maximum – fractional inch (APMX): 3/8
Overall length – fractional inch (OAL): 1.1/2
Overall length – millimeter (OAL): 38.1 mm
ISO: S1347/64

Brand

DORMER
