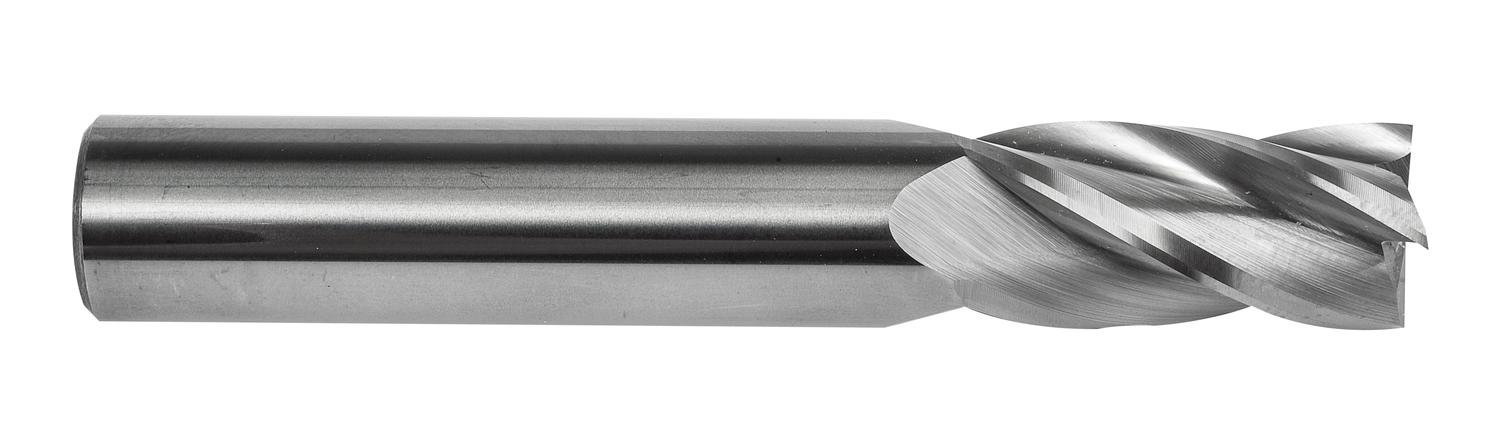

DORMER S13516.0 Carbide Cutters

Product Code: S13516.0

$245.86$223.51 Ex. GST

Product Code: S13516.0 SKU S13516.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Regular length end mill with 4 flutes, diameter 16mm with 32mm length of cut and 88mm overall length, according to DORMER standard with a 16mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.2387 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760848326
Product number (SAP): 86036075
Ordering code ANSI: S13516.0
Gross weight – grams: 231
Connection diameter – millimeter (DCON MS): 16 mm
Cutting diameter – millimeter (DC): 16 mm
Depth of cut maximum – millimeter (APMX): 32 mm
Overall length – millimeter (OAL): 88 mm
ISO: S13516.0

Brand

DORMER
