DORMER S13525.0 Carbide Cutters

Product Code: S13525.0

$589.16$535.60 Ex. GST

Product Code: S13525.0 SKU S13525.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

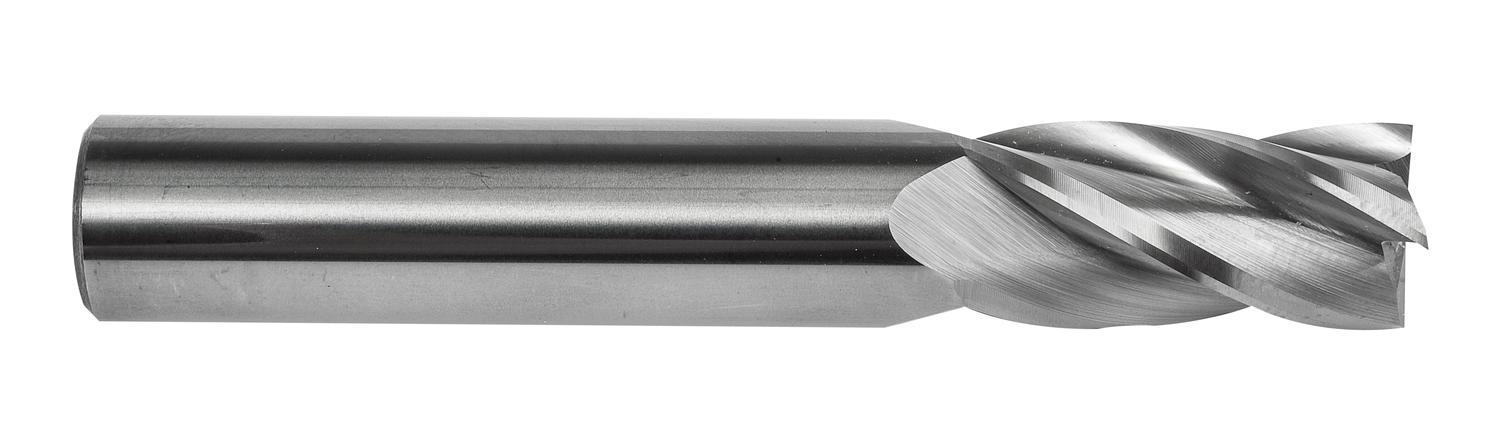

Regular length end mill with 4 flutes, diameter 25mm with 38mm length of cut and 100mm overall length, according to DORMER standard with a 25mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.572 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760848357
Product number (SAP): 86036078
Ordering code ANSI: S13525.0
Gross weight – grams: 626
Connection diameter – millimeter (DCON MS): 25 mm
Cutting diameter – millimeter (DC): 25 mm
Depth of cut maximum – millimeter (APMX): 38 mm
Overall length – millimeter (OAL): 100 mm
ISO: S13525.0

Brand

DORMER
