DORMER S1353.0 Carbide Cutters

Product Code: S1353.0

$25.61$23.28 Ex. GST

Product Code: S1353.0 SKU S1353.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

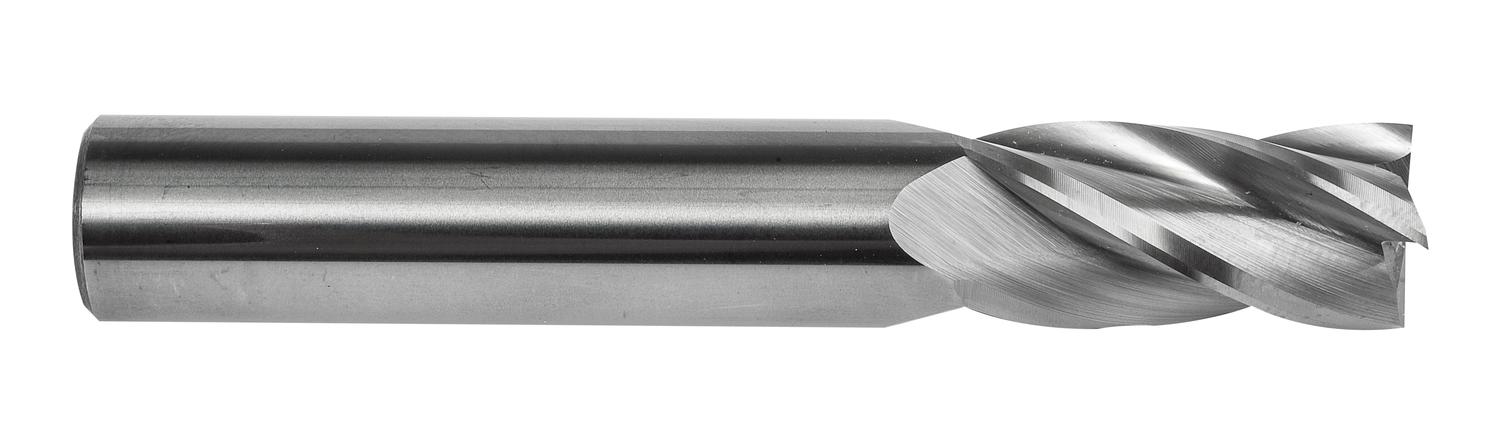

Regular length end mill with 4 flutes, diameter 3mm with 12mm length of cut and 38mm overall length, according to DORMER standard with a 3mm plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.0249 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760848197
Product number (SAP): 86036062
Ordering code ANSI: S1353.0
Gross weight – grams: 4
Connection diameter – millimeter (DCON MS): 3 mm
Cutting diameter – millimeter (DC): 3 mm
Depth of cut maximum – millimeter (APMX): 12 mm
Overall length – millimeter (OAL): 38 mm
ISO: S1353.0

Brand

DORMER
