DORMER S1371 Carbide Cutters

Product Code: S1371

$922.26$838.42 Ex. GST

Product Code: S1371 SKU S1371 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

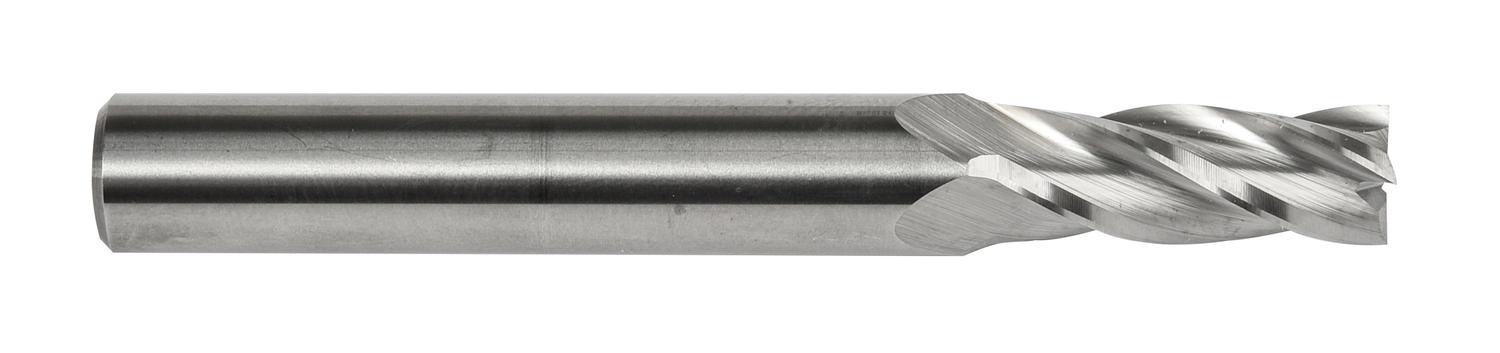

Extra long series end mill with 4 flutes, diameter 1″ with 3″ length of cut and 6″ overall length, according to DORMER standard with a 1″ plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.8954 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760848814
Product number (SAP): 86036124
Ordering code ANSI: S1371
Gross weight – grams: 663
Connection diameter – fractional inch (DCON MS): 1"
Connection diameter – millimeter (DCON MS): 25.4 mm
Cutting diameter – fractional inch (DC): 1"
Cutting diameter – millimeter (DC): 25.4 mm
Depth of cut maximum – fractional inch (APMX): 3"
Overall length – fractional inch (OAL): 6"
Overall length – millimeter (OAL): 152.4 mm
ISO: S1371

Brand

DORMER
