DORMER S1381/8 Carbide Cutters

Product Code: S1381/8

$31.27$28.43 Ex. GST

Product Code: S1381/8 SKU S1381/8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

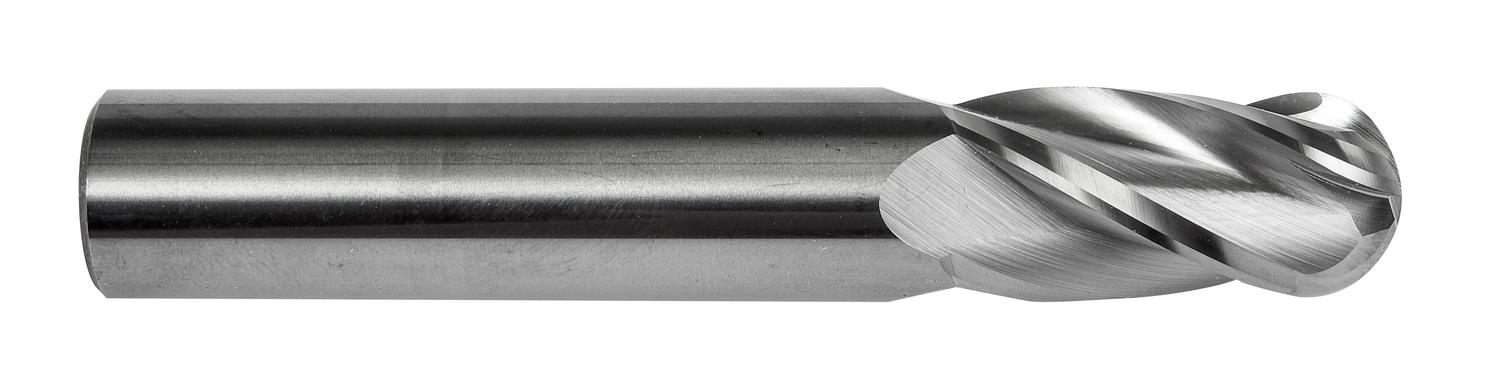

Regular length ball-nose end mill with 4 flutes, diameter 1/8″ with 1/2″ length of cut, 1.1/2″ overall length and 1/16″ full profile radius, according to DORMER standard with a 1/8″ plain shank, solid carbide with bright finish, 30° helix for copy milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.0304 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760848944
Product number (SAP): 86036137
Ordering code ANSI: S1381/8
Gross weight – grams: 5
Connection diameter – fractional inch (DCON MS): 1/8
Connection diameter – millimeter (DCON MS): 3.18 mm
Cutting diameter – fractional inch (DC): 1/8
Cutting diameter – millimeter (DC): 3.18 mm
Depth of cut maximum – fractional inch (APMX): 1/2
Overall length – fractional inch (OAL): 1.1/2
Overall length – millimeter (OAL): 38.1 mm
ISO: S1381/8

Brand

DORMER
