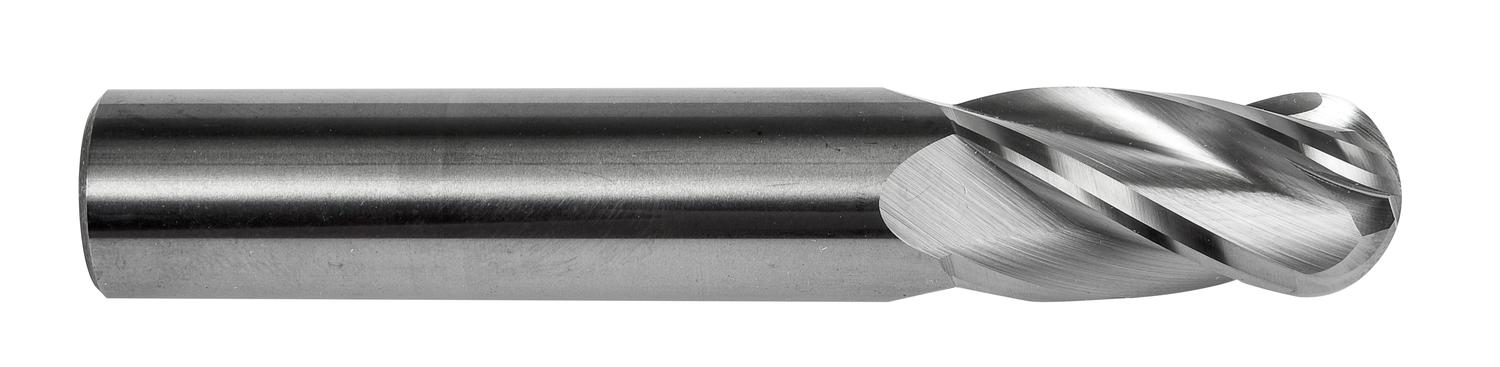

DORMER S1383/32 Carbide Cutters

Description

Regular length ball-nose end mill with 4 flutes, diameter 3/32″ with 3/8″ length of cut, 1.1/2″ overall length and 3/64″ full profile radius, according to DORMER standard with a 1/8″ plain shank, solid carbide with bright finish, 30° helix for copy milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight	0.0334 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 7320760848937 Product number (SAP): 86036136 Ordering code ANSI: S1383/32 Gross weight – grams: 4 With Neck: Yes Connection diameter – fractional inch (DCON MS): 1/8 Connection diameter – millimeter (DCON MS): 3.18 mm Cutting diameter – fractional inch (DC): 3/32 Cutting diameter – millimeter (DC): 2.38 mm Depth of cut maximum – fractional inch (APMX): 3/8 Overall length – fractional inch (OAL): 1.1/2 Overall length – millimeter (OAL): 38.1 mm ISO: S1383/32

Need Technical Advice?

Description

Additional information

Brand

DORMER
