DORMER S1383/4 Carbide Cutters

Product Code: S1383/4

$363.69$330.63 Ex. GST

Product Code: S1383/4 SKU S1383/4 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

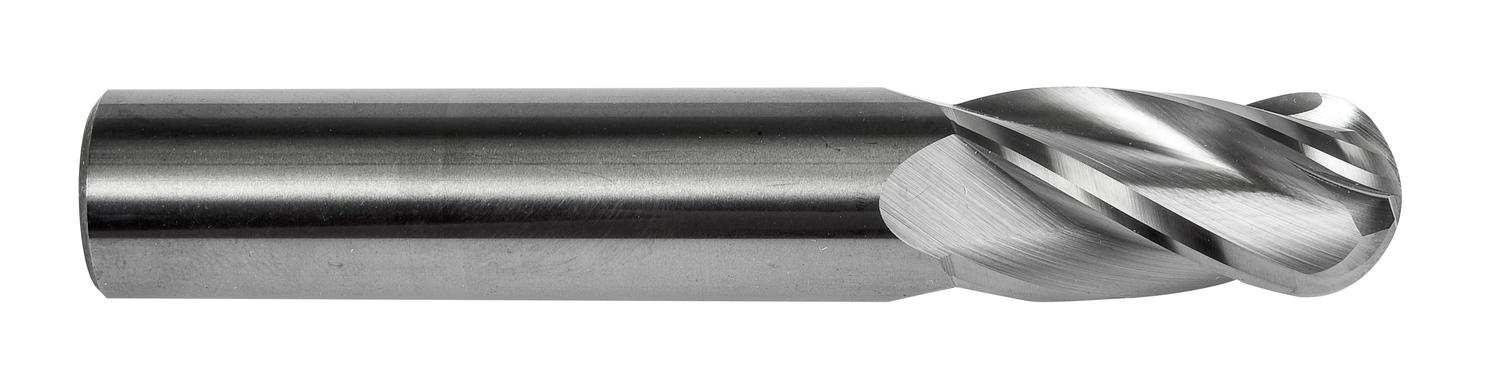

Regular length ball-nose end mill with 4 flutes, diameter 3/4″ with 1.1/2″ length of cut, 4″ overall length and 3/8″ full profile radius, according to DORMER standard with a 3/4″ plain shank, solid carbide with bright finish, 30° helix for copy milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.3531 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760849033
Product number (SAP): 86036146
Ordering code ANSI: S1383/4
Gross weight – grams: 356.6
Connection diameter – fractional inch (DCON MS): 3/4
Connection diameter – millimeter (DCON MS): 19.05 mm
Cutting diameter – fractional inch (DC): 3/4
Cutting diameter – millimeter (DC): 19.05 mm
Depth of cut maximum – fractional inch (APMX): 1.1/2
Overall length – fractional inch (OAL): 4"
Overall length – millimeter (OAL): 101.6 mm
ISO: S1383/4

Brand

DORMER
