DORMER S1461/4 Carbide Cutters

Product Code: S1461/4

$75.91$69.01 Ex. GST

Product Code: S1461/4 SKU S1461/4 Categories , ,
DORMER S1461/4 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

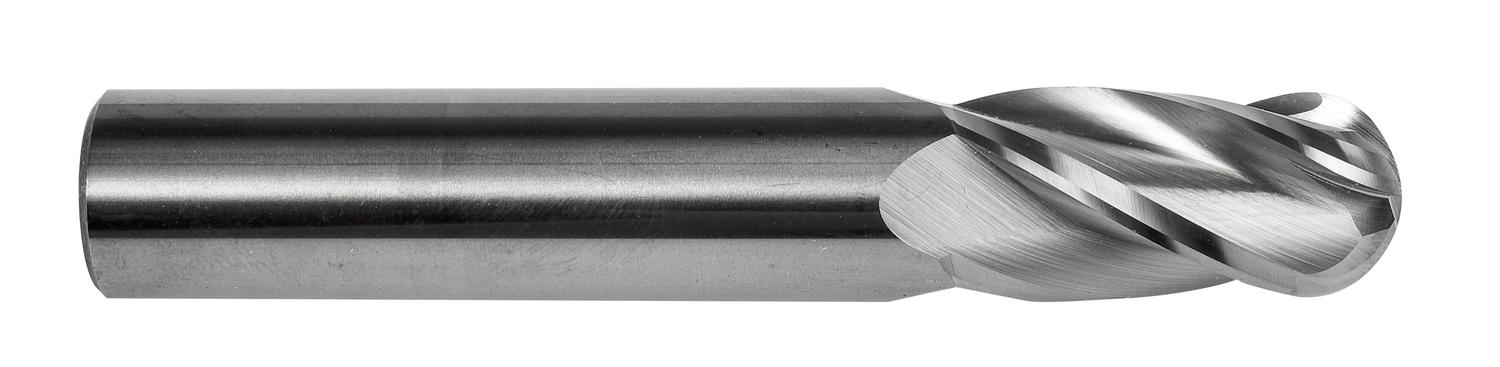

Long series ball-nose end mill with 4 flutes, diameter 1/4″ with 1.1/8″ length of cut, 3″ overall length and 1/8″ full profile radius, according to DORMER standard with a 1/4″ plain shank, solid carbide with bright finish, 30° helix for copy milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Additional information

Weight 0.0737 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760849330
Product number (SAP): 86036176
Ordering code ANSI: S1461/4
Gross weight – grams: 23
Connection diameter – fractional inch (DCON MS): 1/4
Connection diameter – millimeter (DCON MS): 6.35 mm
Cutting diameter – fractional inch (DC): 1/4
Cutting diameter – millimeter (DC): 6.35 mm
Depth of cut maximum – fractional inch (APMX): 1.1/8
Overall length – fractional inch (OAL): 3"
Overall length – millimeter (OAL): 76.2 mm
ISO: S1461/4

Brand

DORMER
