DORMER S2127/32 Carbide Cutters

Product Code: S2127/32

$73.65$66.95 Ex. GST

Product Code: S2127/32 SKU S2127/32 Categories , ,
DORMER S2127/32 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

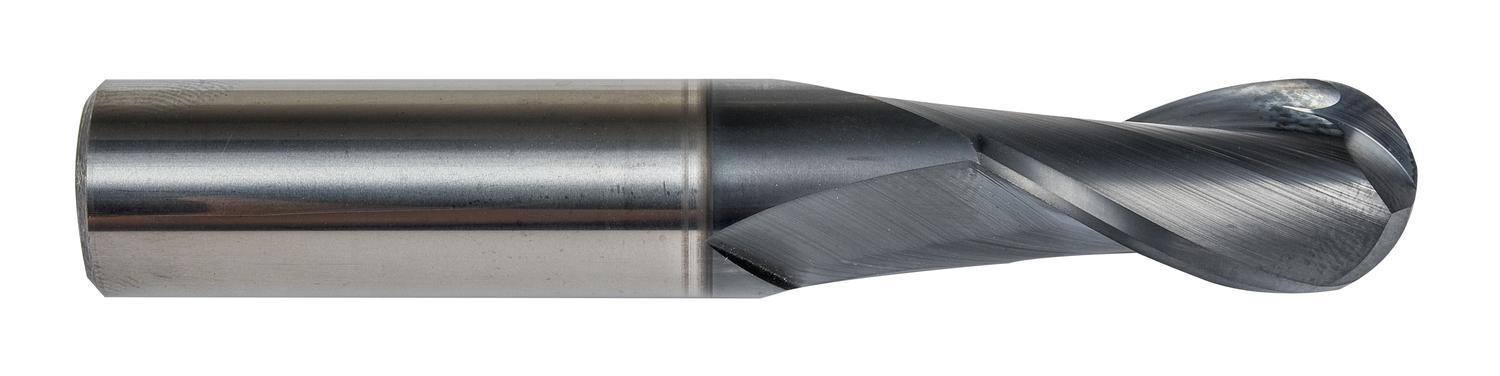

Regular length ball-nose end mill with 2 flutes, diameter 7/32″ with 5/8″ length of cut, 2.1/2″ overall length and 7/64″ full profile radius, according to DORMER standard with a 1/4″ plain shank, solid carbide with TiAlN coating, 30° helix for copy milling in steel and cast steel, stainless steel and malleable, ductile and compacted graphite cast-iron

Additional information

Weight 0.0715 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760846513
Product number (SAP): 86035894
Ordering code ANSI: S2127/32
Gross weight – grams: 25.5
With Neck: Yes
Connection diameter – fractional inch (DCON MS): 1/4
Connection diameter – millimeter (DCON MS): 6.35 mm
Cutting diameter – fractional inch (DC): 7/32
Cutting diameter – millimeter (DC): 5.56 mm
Depth of cut maximum – fractional inch (APMX): 5/8
Overall length – fractional inch (OAL): 2.1/2
Overall length – millimeter (OAL): 63.5 mm
ISO: S2127/32

Brand

DORMER
