DORMER S2194.0 Carbide Cutters

Product Code: S2194.0

$110.47$100.43 Ex. GST

Product Code: S2194.0 SKU S2194.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

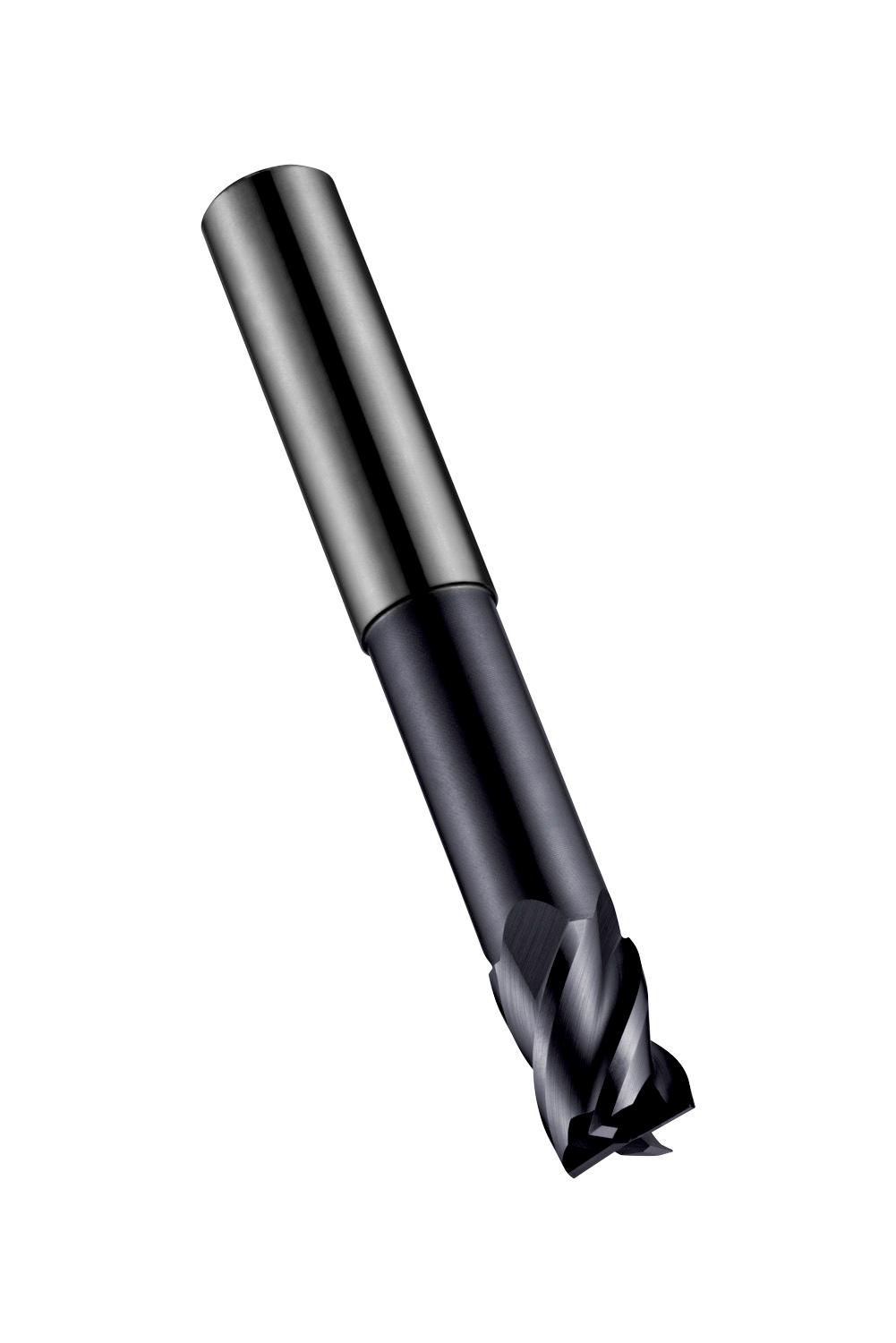

Extra short series end mill with 4 flutes, diameter 4mm with 8mm length of cut, 60mm overall length and 32mm reach with neck relief, according to DORMER standard with a 4mm plain shank, solid carbide with AlTiN coating, 40° helix and 3° rake angle for shoulder milling and plunging in martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel and high-temperature alloys

Additional information

Weight 0.1073 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760681886
Product number (SAP): 86021776
Ordering code ANSI: S2194.0
Gross weight – grams: 12.6
Cutting diameter – millimeter (DC): 4 mm
Connection diameter – millimeter (DCON MS): 4 mm
Depth of cut maximum – millimeter (APMX): 8 mm
Overall length – millimeter (OAL): 60 mm
Flute count (NOF): 4
Usable Length – millimeter (LU): 32 mm
Neck diameter – millimeter (DN): 3.7 mm
Radial rake angle (GAMF): 3
With Neck: Yes
ISO: S2194.0

Brand

DORMER
