DORMER S2196.0 Carbide Cutters

Product Code: S2196.0

$112.74$102.49 Ex. GST

Product Code: S2196.0 SKU S2196.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

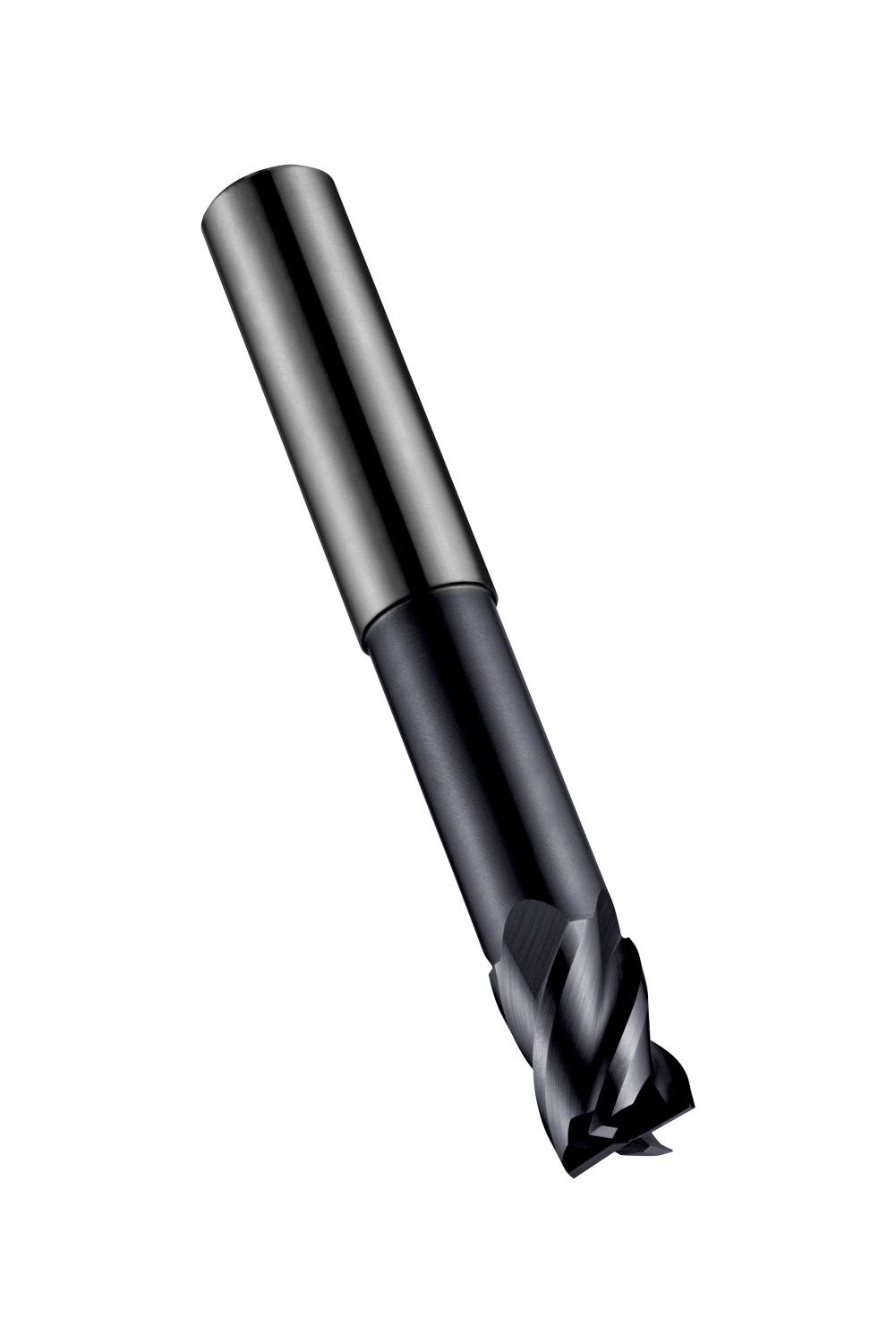

Extra short series end mill with 4 flutes, diameter 6mm with 10mm length of cut, 75mm overall length and 40mm reach with neck relief, according to DORMER standard with a 6mm plain shank, solid carbide with AlTiN coating, 40° helix and 3° rake angle for shoulder milling and plunging in martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel and high-temperature alloys

Additional information

Weight 0.1095 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760681909
Product number (SAP): 86021778
Ordering code ANSI: S2196.0
Gross weight – grams: 32.9
Cutting diameter – millimeter (DC): 6 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 10 mm
Overall length – millimeter (OAL): 75 mm
Flute count (NOF): 4
Usable Length – millimeter (LU): 40 mm
Neck diameter – millimeter (DN): 5.5 mm
Radial rake angle (GAMF): 3
With Neck: Yes
ISO: S2196.0

Brand

DORMER
