DORMER S2211/4 Carbide Cutters

Description

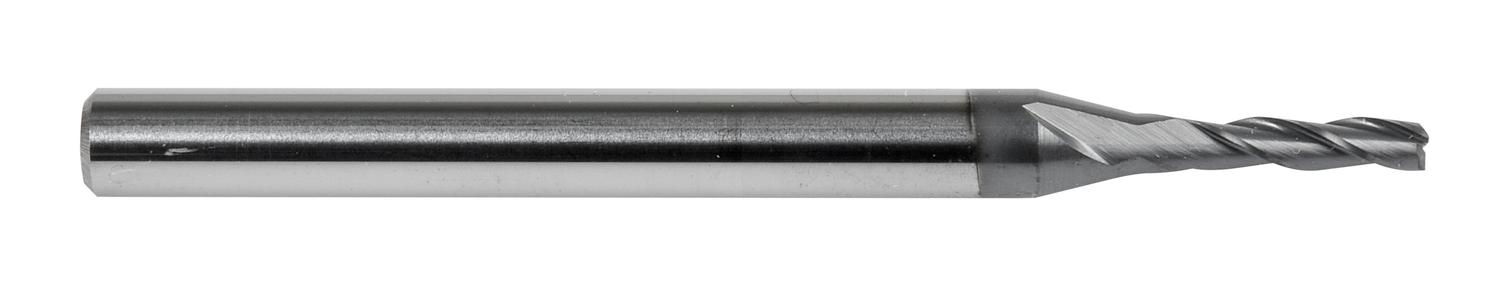

Regular length end mill with 3 flutes, diameter 1/4″ with 3/4″ length of cut and 2.1/2″ overall length, according to DORMER standard with a 1/4″ plain shank, solid carbide with TiAlN coating, 30° helix for shoulder milling and slot milling in steel and cast steel, stainless steel and malleable, ductile and compacted graphite cast-iron

Additional information

Weight	0.0572 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 7320760847183 Product number (SAP): 86035961 Ordering code ANSI: S2211/4 Gross weight – grams: 58 Connection diameter – fractional inch (DCON MS): 1/4 Connection diameter – millimeter (DCON MS): 6.35 mm Cutting diameter – fractional inch (DC): 1/4 Cutting diameter – millimeter (DC): 6.35 mm Depth of cut maximum – fractional inch (APMX): 3/4 Overall length – fractional inch (OAL): 2.1/2 Overall length – millimeter (OAL): 63.5 mm ISO: S2211/4
