DORMER S223HB1/4XR.015 Carbide Cutters

Product Code: S223HB1/4XR.015

$78.18$71.07 Ex. GST

Product Code: S223HB1/4XR.015 SKU S223HB1/4XR.015 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

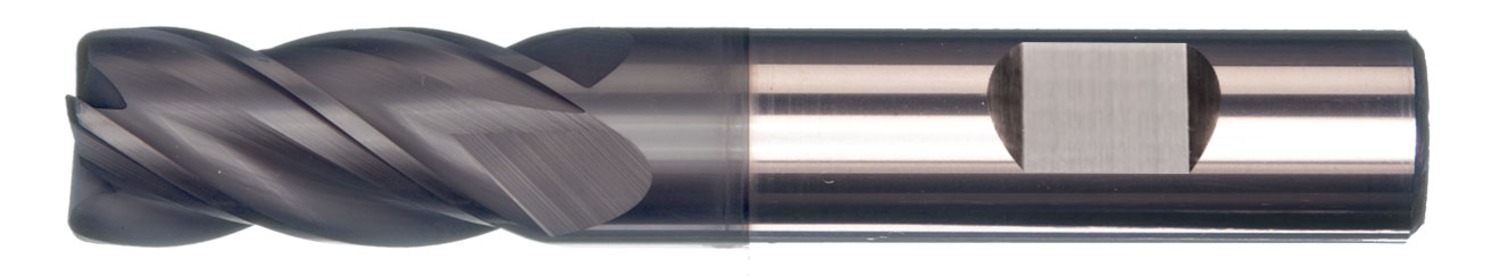

Regular length corner radius end mill with 4 flutes, diameter 1/4″ with 5/8″ length of cut, 2.1/2″ overall length and 0.015″ corner radii, according to DORMER standard with a 1/4″ Weldon shank, solid carbide with AlTiN coating, unequal helix for shoulder milling, plunging, progressive plunge milling, ramping, helical milling and trochoidal milling in steel and cast steel, stainless steel, cast-iron, high-temperature alloys, chilled, hardened cast-iron and hardened steel <55HRC

Additional information

Weight 0.0759 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760847480
Product number (SAP): 86035991
Ordering code ANSI: S223HB1/4XR.015
Gross weight – grams: 28
Flute helix unequal: Yes
Connection diameter – fractional inch (DCON MS): 1/4
Connection diameter – millimeter (DCON MS): 6.35 mm
Cutting diameter – fractional inch (DC): 1/4
Cutting diameter – millimeter (DC): 6.35 mm
Overall length – fractional inch (OAL): 2.1/2
Overall length – millimeter (OAL): 63.5 mm
ISO: S223HB1/4XR.015

Brand

DORMER
