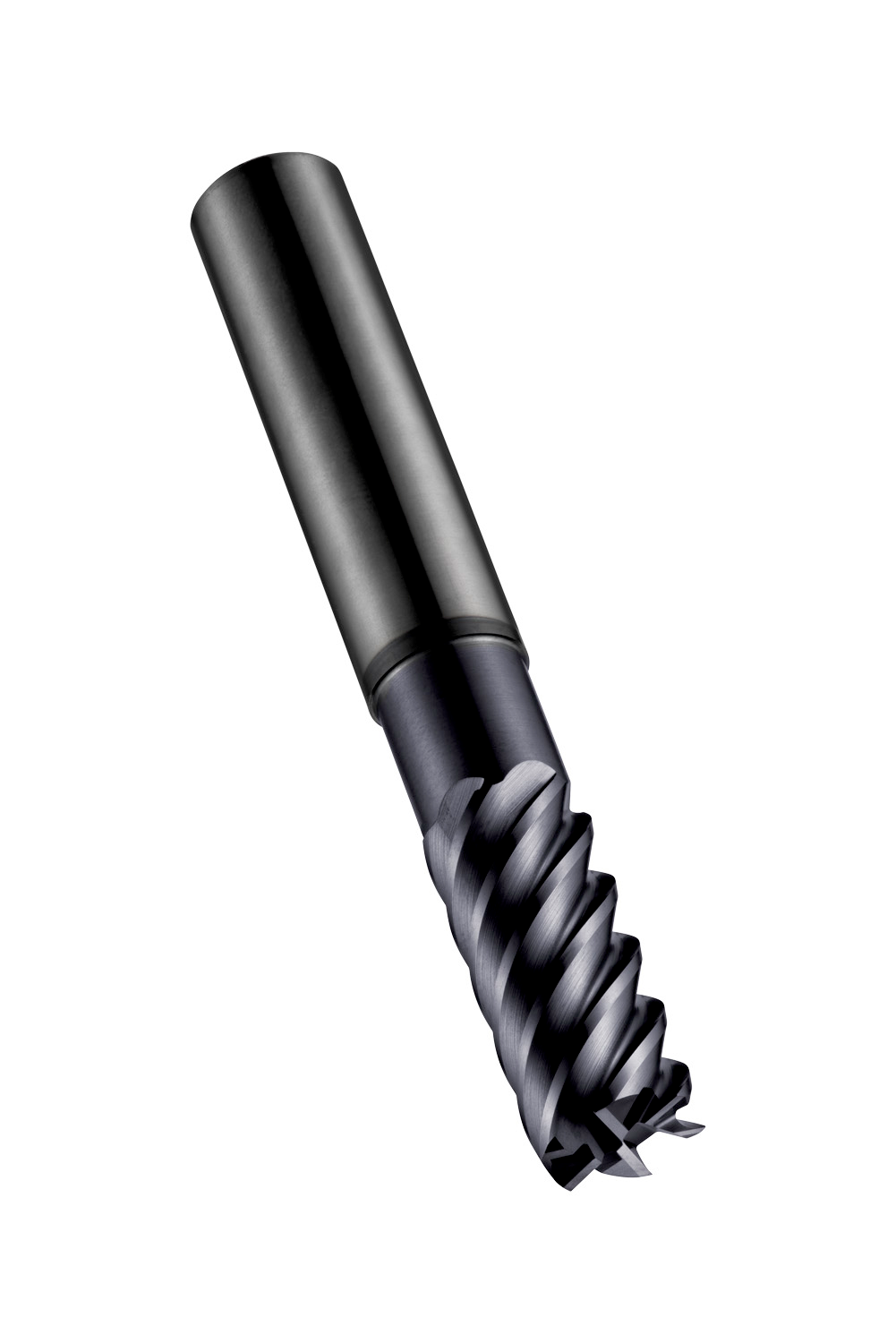

DORMER S22516.0 Carbide Cutters

Product Code: S22516.0

$471.33$428.48 Ex. GST

Product Code: S22516.0 SKU S22516.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series finishing end mill with 8 flutes, diameter 16mm with 30mm length of cut, 90mm overall length and 46mm reach with neck relief, according to DORMER standard with a 16mm plain shank, solid carbide with AlTiN coating, 50° helix and 3° rake angle for shoulder milling in martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel and high-temperature alloys

Additional information

Weight 0.4576 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760683552
Product number (SAP): 86021943
Ordering code ANSI: S22516.0
Gross weight – grams: 234
Cutting diameter – millimeter (DC): 16 mm
Connection diameter – millimeter (DCON MS): 16 mm
Depth of cut maximum – millimeter (APMX): 30 mm
Overall length – millimeter (OAL): 90 mm
Flute count (NOF): 8
Usable Length – millimeter (LU): 46 mm
Neck diameter – millimeter (DN): 15 mm
Radial rake angle (GAMF): 3
With Neck: Yes
ISO: S22516.0

Brand

DORMER
