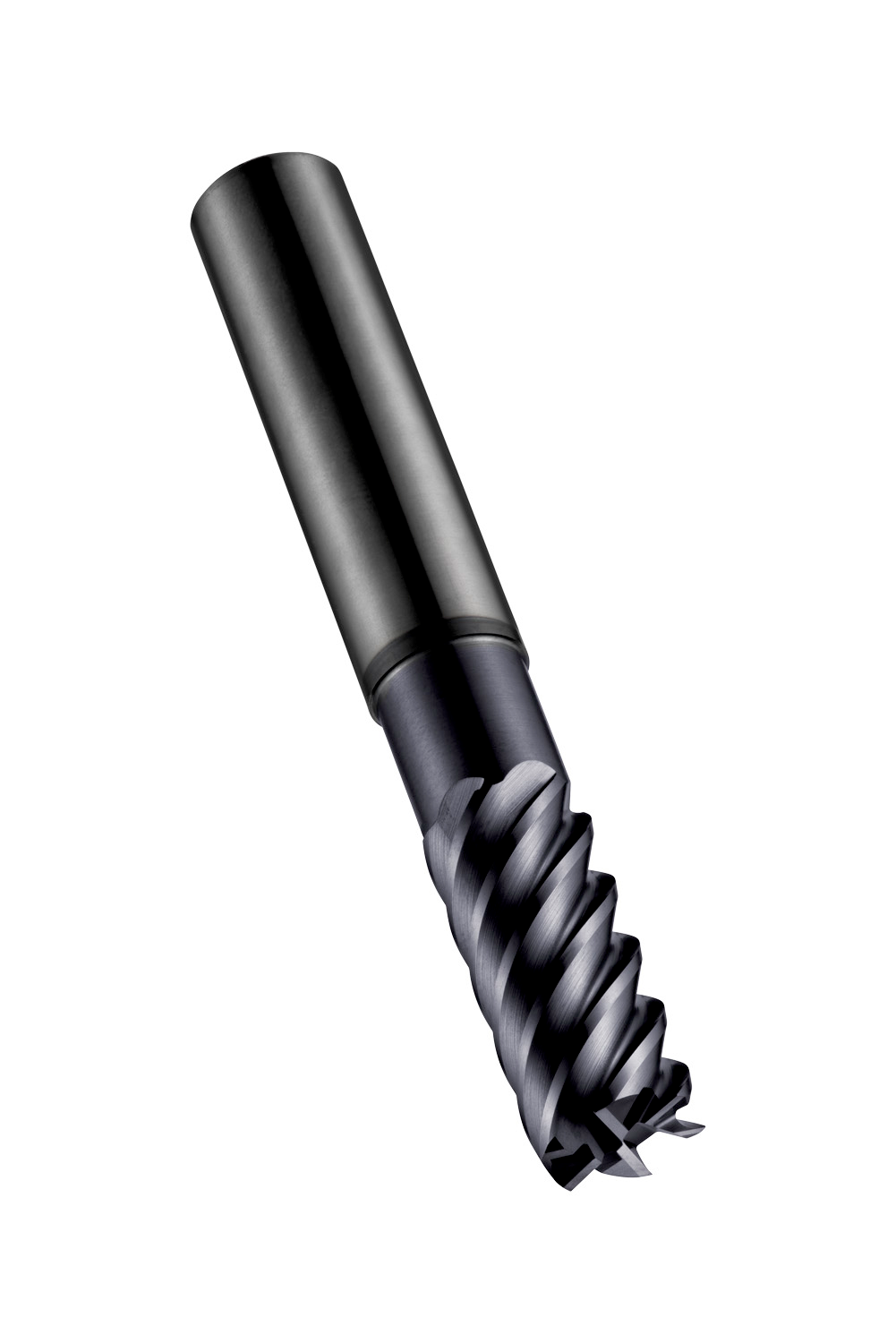

DORMER S22520.0 Carbide Cutters

Product Code: S22520.0

$729.65$663.32 Ex. GST

Product Code: S22520.0 SKU S22520.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series finishing end mill with 8 flutes, diameter 20mm with 38mm length of cut, 100mm overall length and 58mm reach with neck relief, according to DORMER standard with a 20mm plain shank, solid carbide with AlTiN coating, 50° helix and 3° rake angle for shoulder milling in martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel and high-temperature alloys

Additional information

Weight 0.7084 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760683576
Product number (SAP): 86021945
Ordering code ANSI: S22520.0
Gross weight – grams: 401
Cutting diameter – millimeter (DC): 20 mm
Connection diameter – millimeter (DCON MS): 20 mm
Depth of cut maximum – millimeter (APMX): 38 mm
Overall length – millimeter (OAL): 100 mm
Flute count (NOF): 8
Usable Length – millimeter (LU): 58 mm
Neck diameter – millimeter (DN): 19 mm
Radial rake angle (GAMF): 3
With Neck: Yes
ISO: S22520.0

Brand

DORMER
