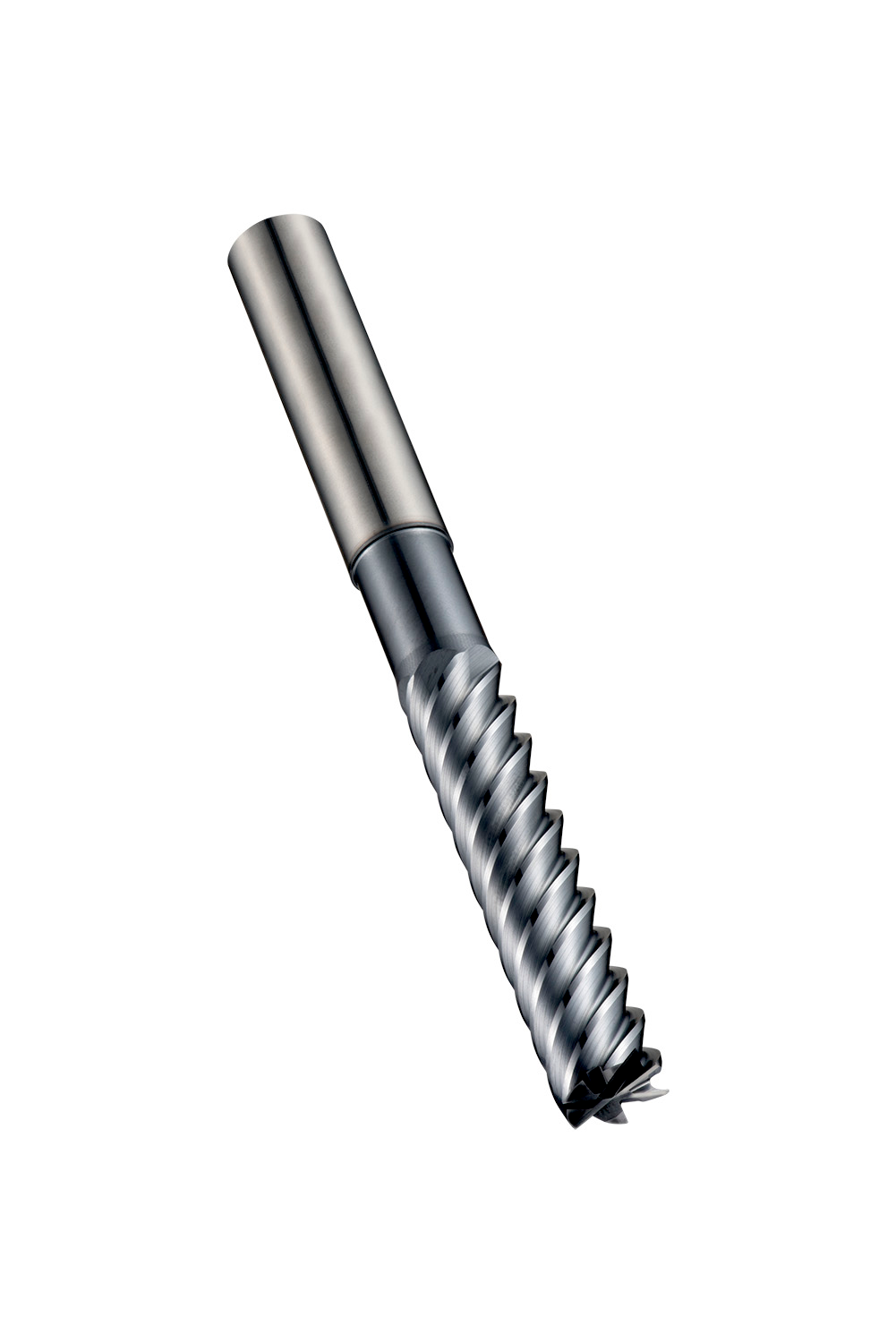

DORMER S2263.0 Carbide Cutters

Product Code: S2263.0

$111.03$100.94 Ex. GST

Product Code: S2263.0 SKU S2263.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Long series finishing end mill with 6 flutes, diameter 3mm with 19mm length of cut, 75mm overall length and 30mm reach with neck relief, according to DORMER standard with a 6mm plain shank, solid carbide with AlTiN coating, 50° helix and 3° rake angle for shoulder milling in martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel and high-temperature alloys

Additional information

Weight 0.1078 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760683293
Product number (SAP): 86021917
Ordering code ANSI: S2263.0
Gross weight – grams: 25
Cutting diameter – millimeter (DC): 3 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 19 mm
Overall length – millimeter (OAL): 75 mm
Flute count (NOF): 6
Usable Length – millimeter (LU): 30 mm
Neck diameter – millimeter (DN): 2.8 mm
Radial rake angle (GAMF): 3
With Neck: Yes
ISO: S2263.0

Brand

DORMER
