DORMER S2313.0XD3 Carbide Cutters

Product Code: S2313.0XD3

$112.17$101.97 Ex. GST

Product Code: S2313.0XD3 SKU S2313.0XD3 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

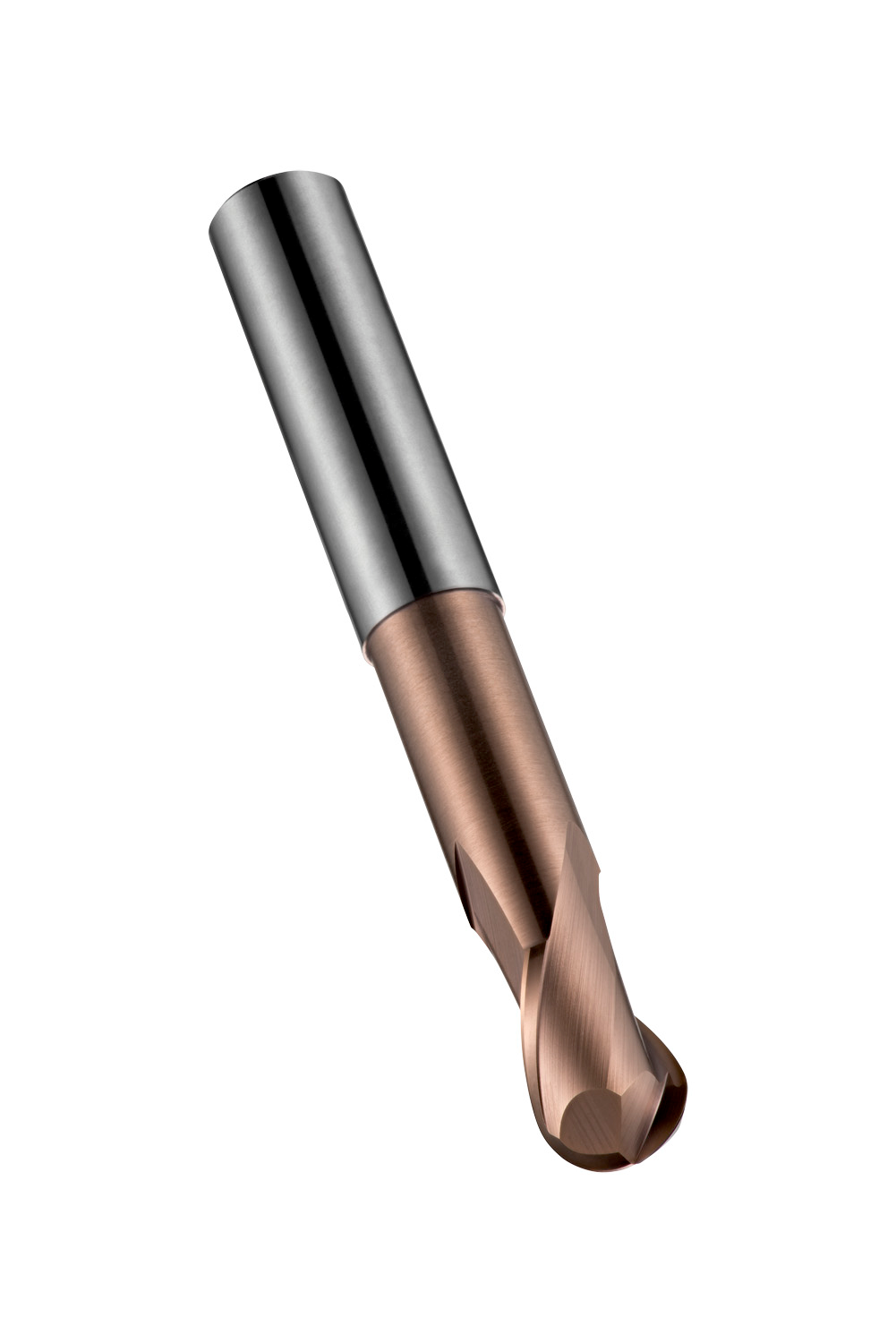

Extra short series ball-nose end mill with 2 flutes, diameter 3mm with 5mm length of cut, 60mm overall length, 21mm reach with neck relief and 1.5mm full profile radius, according to DORMER standard with a 3mm plain shank, solid carbide with TiSiN coating, 30° helix and 3° rake angle for copy milling in martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel and high-temperature alloys

Additional information

Weight 0.1089 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760680377
Product number (SAP): 86021628
Ordering code ANSI: S2313.0XD3
Gross weight – grams: 8.5
Cutting diameter – millimeter (DC): 3 mm
Corner radius – millimeter (RE): 1.5 mm
Connection diameter – millimeter (DCON MS): 3 mm
Depth of cut maximum – millimeter (APMX): 5 mm
Overall length – millimeter (OAL): 60 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 21 mm
Neck diameter – millimeter (DN): 2.8 mm
Radial rake angle (GAMF): 3
With Neck: Yes
ISO: S2313.0XD3

Brand

DORMER
