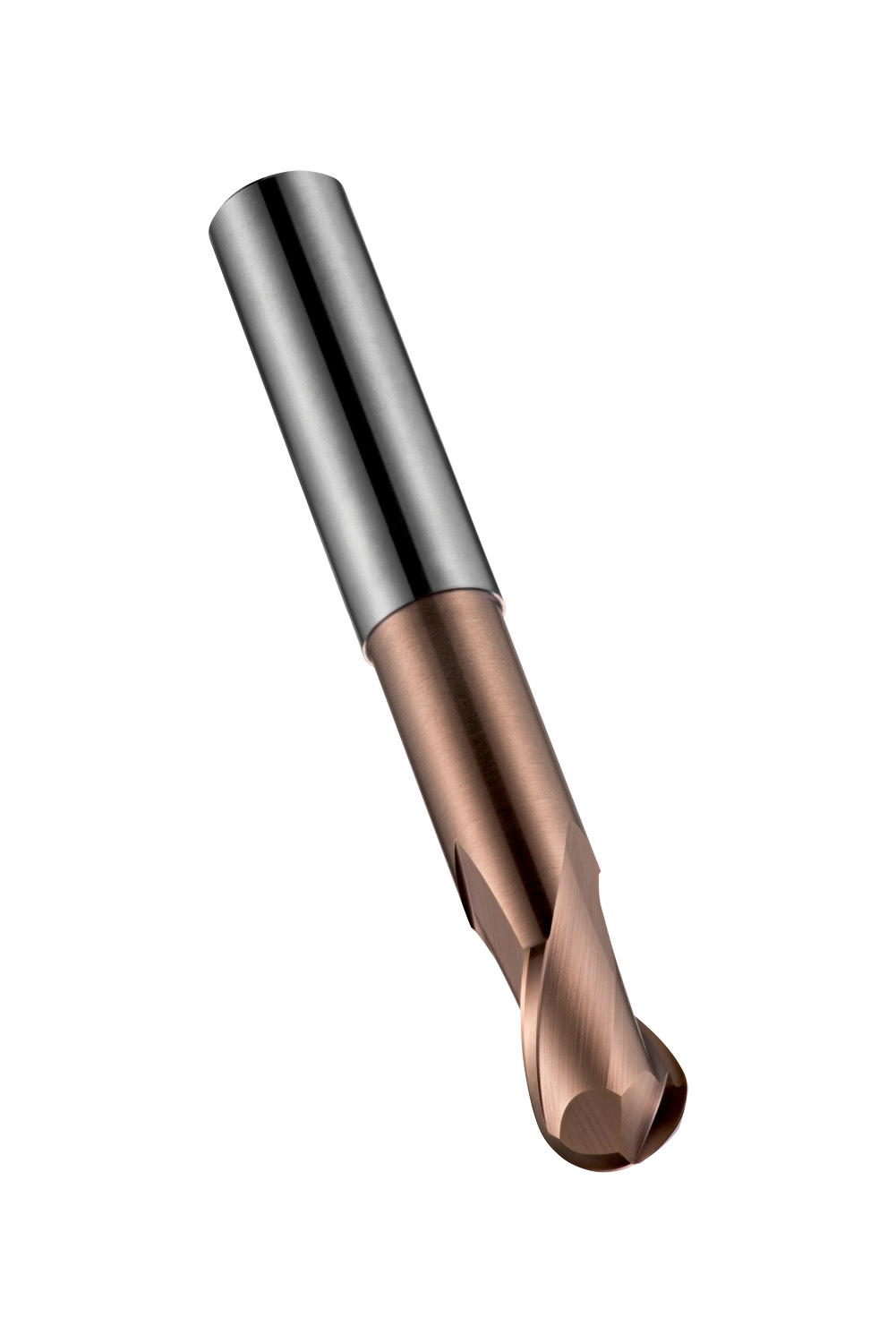

DORMER S2315.0 Carbide Cutters

Product Code: S2315.0

$124.63$113.30 Ex. GST

Product Code: S2315.0 SKU S2315.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Extra short series ball-nose end mill with 2 flutes, diameter 5mm with 9mm length of cut, 60mm overall length, 32mm reach with neck relief and 2.5mm full profile radius, according to DORMER standard with a 5mm plain shank, solid carbide with TiSiN coating, 30° helix and 3° rake angle for copy milling in martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel and high-temperature alloys

Additional information

Weight 0.1210 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760680414
Product number (SAP): 86021632
Ordering code ANSI: S2315.0
Gross weight – grams: 20.5
Cutting diameter – millimeter (DC): 5 mm
Corner radius – millimeter (RE): 2.5 mm
Connection diameter – millimeter (DCON MS): 5 mm
Depth of cut maximum – millimeter (APMX): 9 mm
Overall length – millimeter (OAL): 60 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 32 mm
Neck diameter – millimeter (DN): 4.6 mm
Radial rake angle (GAMF): 3
With Neck: Yes
ISO: S2315.0

Brand

DORMER
