DORMER S23314.0 Carbide Cutters

Product Code: S23314.0

$488.32$443.93 Ex. GST

Product Code: S23314.0 SKU S23314.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

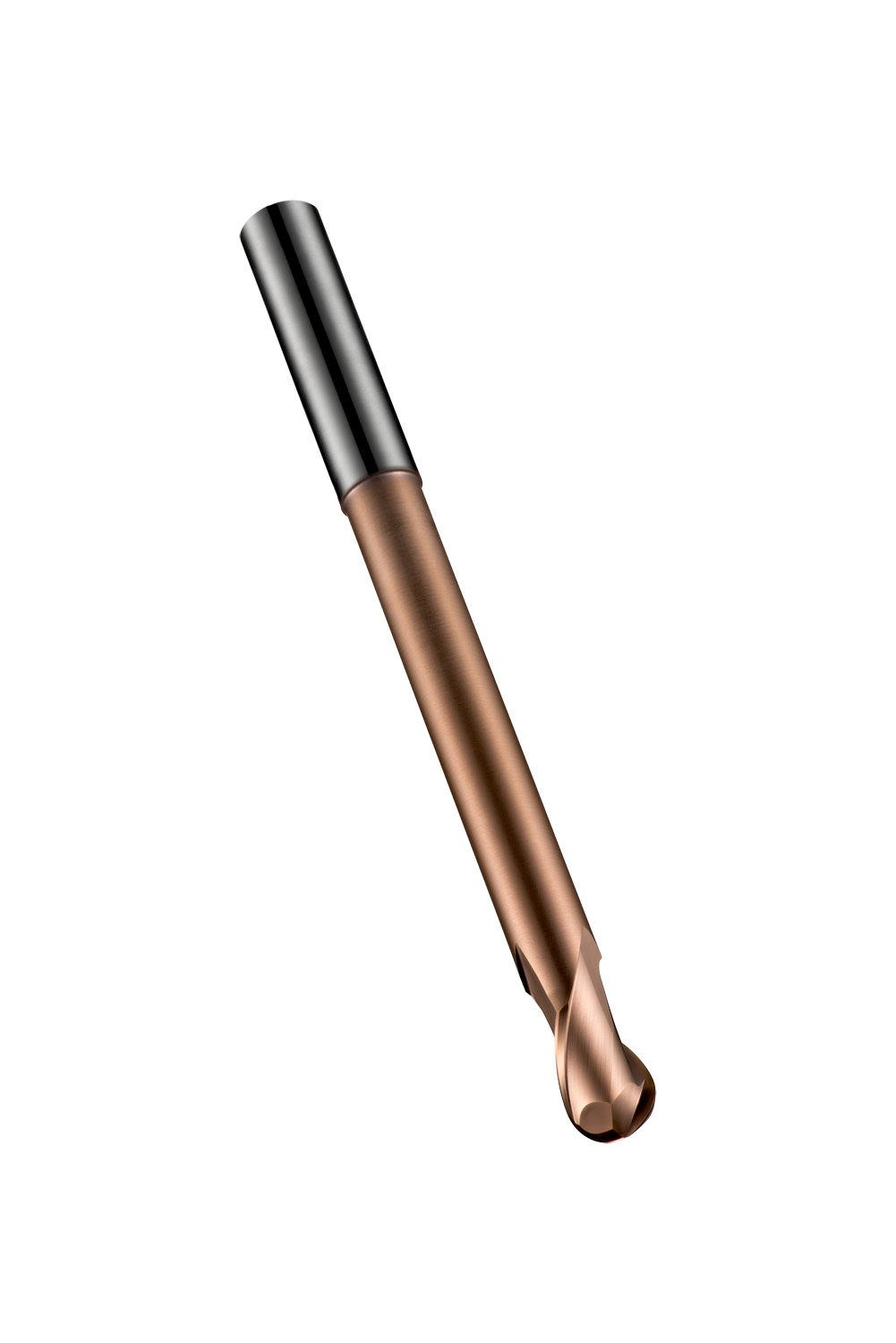

Extra short series ball-nose end mill with 2 flutes, diameter 14mm with 32mm length of cut, 150mm overall length, 110mm reach with neck relief and 7mm full profile radius, according to DORMER standard with a 14mm plain shank, solid carbide with TiSiN coating, 30° helix and 3° rake angle for copy milling in martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel and high-temperature alloys

Additional information

Weight 0.4741 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760681138
Product number (SAP): 86021703
Ordering code ANSI: S23314.0
Gross weight – grams: 280
Cutting diameter – millimeter (DC): 14 mm
Corner radius – millimeter (RE): 7 mm
Connection diameter – millimeter (DCON MS): 14 mm
Depth of cut maximum – millimeter (APMX): 32 mm
Overall length – millimeter (OAL): 150 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 110 mm
Neck diameter – millimeter (DN): 13 mm
Radial rake angle (GAMF): 3
With Neck: Yes
ISO: S23314.0

Brand

DORMER
