DORMER S2332.0XD4 Carbide Cutters

Product Code: S2332.0XD4

$137.09$124.63 Ex. GST

Product Code: S2332.0XD4 SKU S2332.0XD4 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

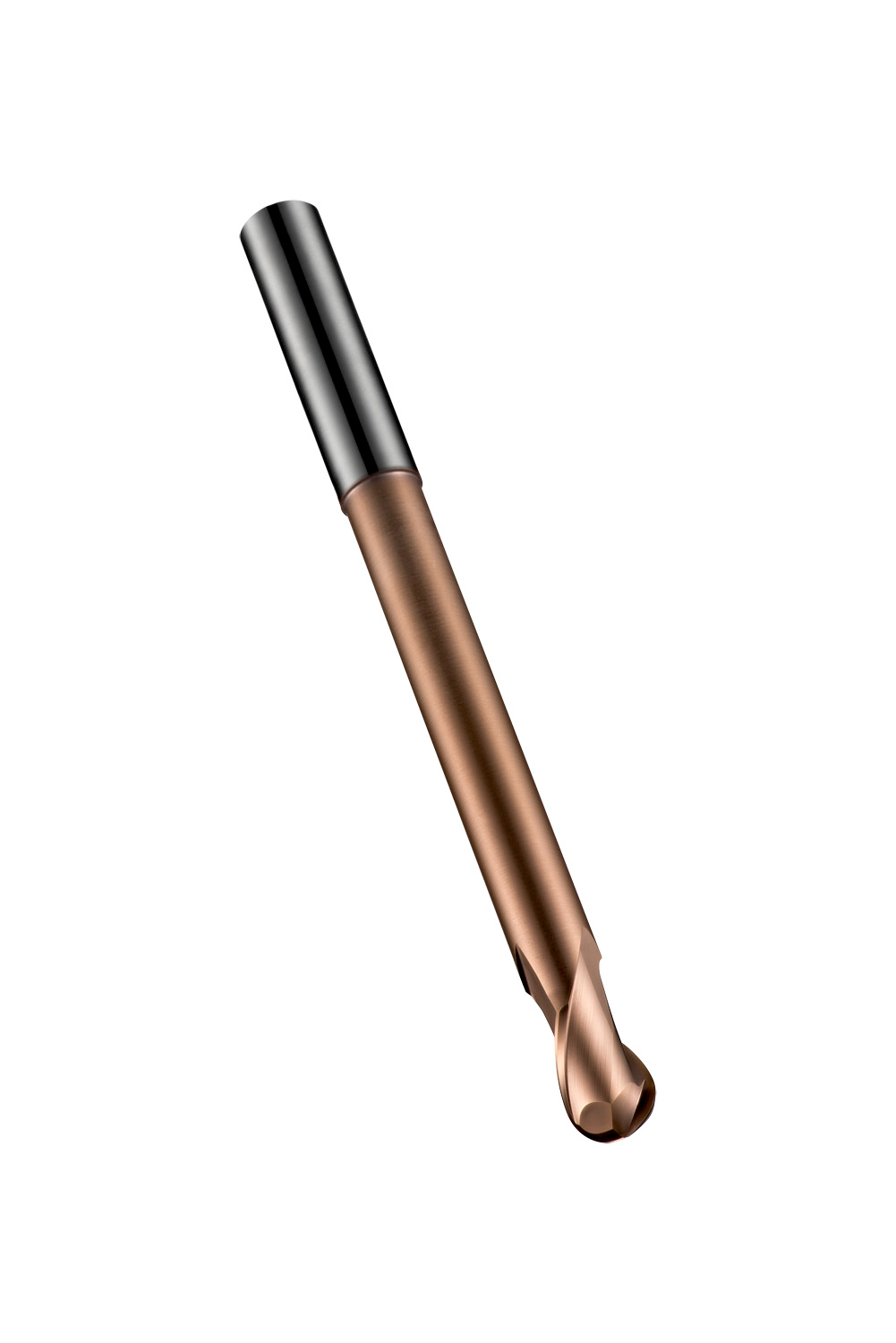

Extra short series ball-nose end mill with 2 flutes, diameter 2mm with 4mm length of cut, 100mm overall length, 20mm reach with neck relief and 1mm full profile radius, according to DORMER standard with a 4mm plain shank, solid carbide with TiSiN coating, 30° helix and 3° rake angle for copy milling in martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel and high-temperature alloys

Additional information

Weight 0.1331 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760681039
Product number (SAP): 86021693
Ordering code ANSI: S2332.0XD4
Gross weight – grams: 22
Cutting diameter – millimeter (DC): 2 mm
Corner radius – millimeter (RE): 1 mm
Connection diameter – millimeter (DCON MS): 4 mm
Depth of cut maximum – millimeter (APMX): 4 mm
Overall length – millimeter (OAL): 100 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 20 mm
Neck diameter – millimeter (DN): 2 mm
Radial rake angle (GAMF): 3
With Neck: Yes
ISO: S2332.0XD4

Brand

DORMER
