DORMER S2341/2 Carbide Cutters

Product Code: S2341/2

$225.47$204.97 Ex. GST

Product Code: S2341/2 SKU S2341/2 Categories , ,

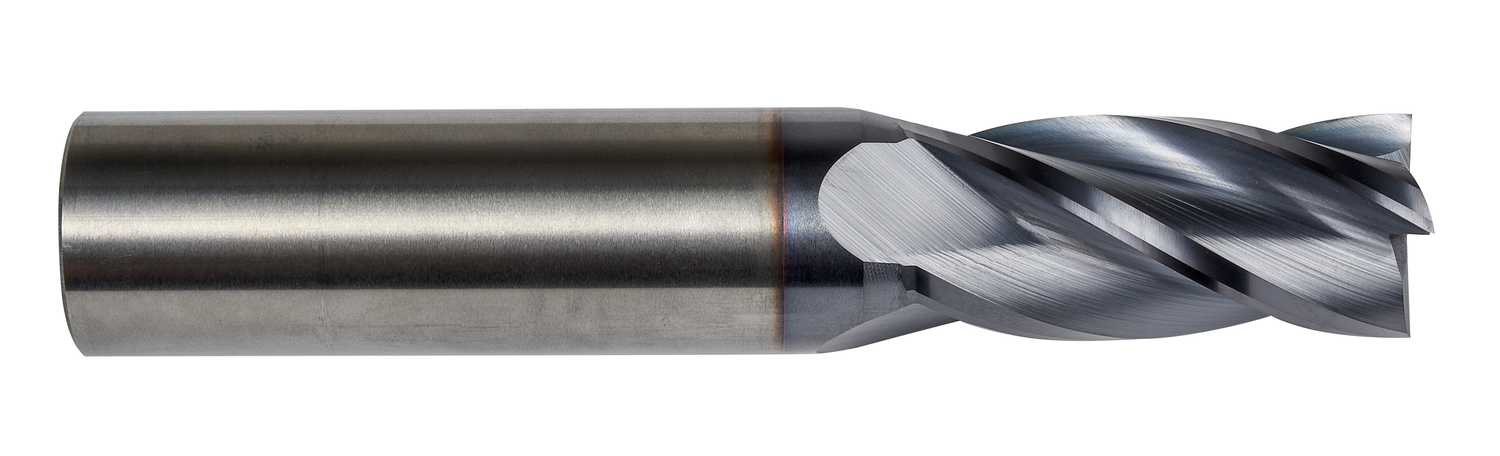

DORMER S2341/2 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Regular length end mill with 4 flutes, diameter 1/2″ with 1″ length of cut and 3″ overall length, according to DORMER standard with a 1/2″ plain shank, solid carbide with TiAlN coating, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel and cast-iron

Additional information

Weight 0.2189 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760848104
Product number (SAP): 86036053
Ordering code ANSI: S2341/2
Gross weight – grams: 124
Connection diameter – fractional inch (DCON MS): 1/2
Connection diameter – millimeter (DCON MS): 12.7 mm
Cutting diameter – fractional inch (DC): 1/2
Cutting diameter – millimeter (DC): 12.7 mm
Depth of cut maximum – fractional inch (APMX): 1"
Overall length – fractional inch (OAL): 3"
Overall length – millimeter (OAL): 76.2 mm
ISO: S2341/2

Brand

DORMER
