DORMER S23411/16 Carbide Cutters

Product Code: S23411/16

$475.86$432.60 Ex. GST

Product Code: S23411/16 SKU S23411/16 Categories , ,

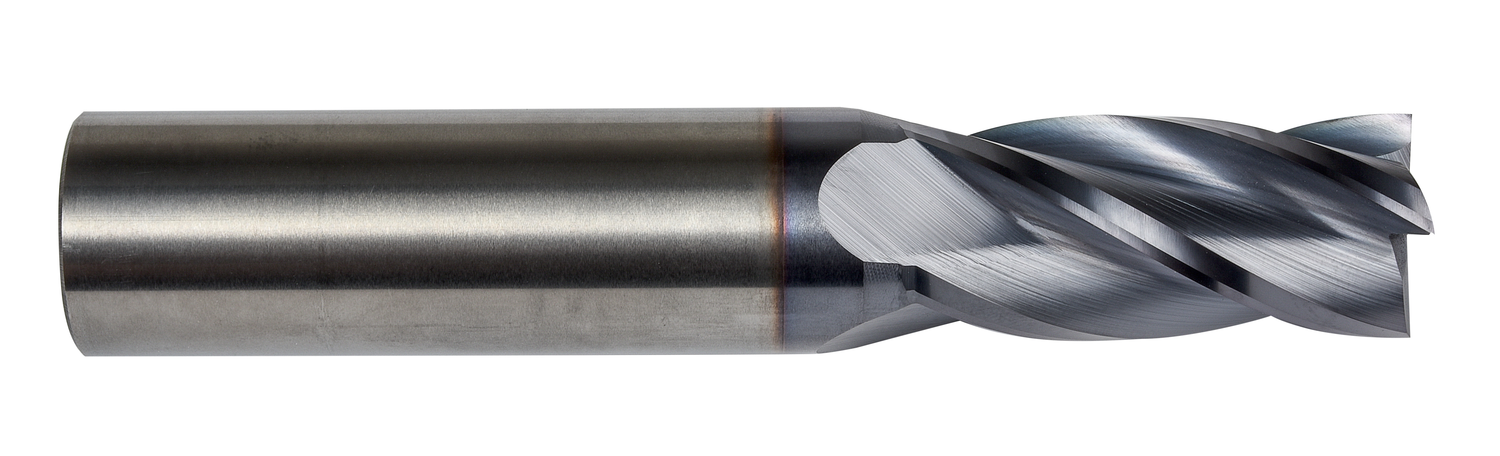

DORMER S23411/16 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Regular length end mill with 4 flutes, diameter 11/16″ with 1.1/2″ length of cut and 4″ overall length, according to DORMER standard with a 3/4″ plain shank, solid carbide with TiAlN coating, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel and cast-iron

Additional information

Weight 0.462 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760848135
Product number (SAP): 86036056
Ordering code ANSI: S23411/16
Gross weight – grams: 352
With Neck: Yes
Connection diameter – fractional inch (DCON MS): 3/4
Connection diameter – millimeter (DCON MS): 19.05 mm
Cutting diameter – fractional inch (DC): 11/16
Cutting diameter – millimeter (DC): 17.46 mm
Depth of cut maximum – fractional inch (APMX): 1.1/2
Overall length – fractional inch (OAL): 4"
Overall length – millimeter (OAL): 101.6 mm
ISO: S23411/16

Brand

DORMER
