DORMER S2343/8 Carbide Cutters

Product Code: S2343/8

$163.15$148.32 Ex. GST

Product Code: S2343/8 SKU S2343/8 Categories , ,

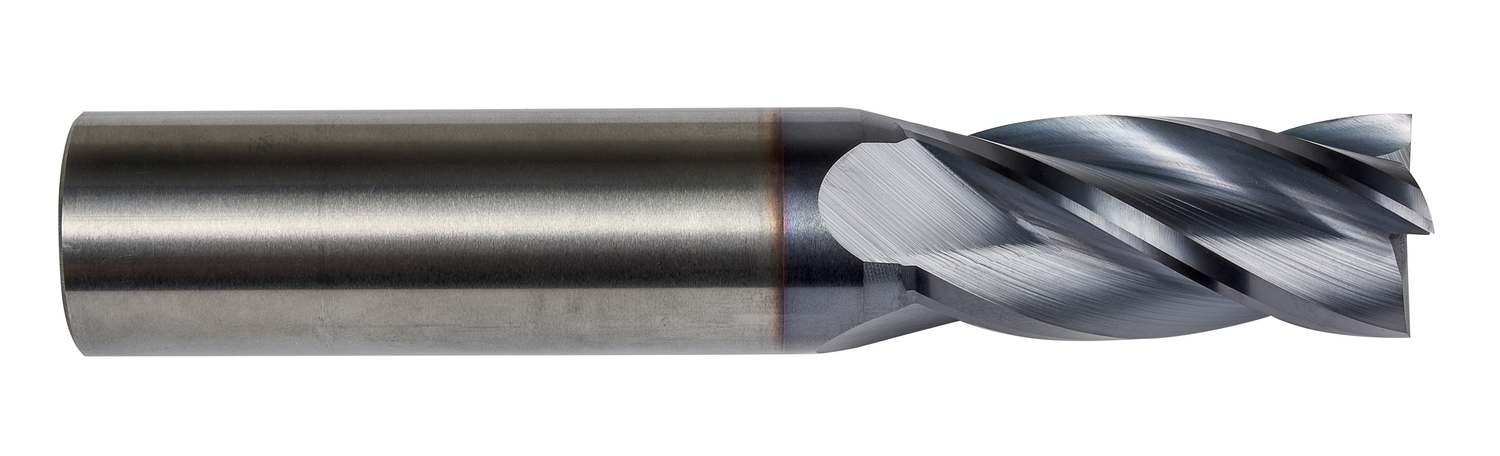

DORMER S2343/8 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Regular length end mill with 4 flutes, diameter 3/8″ with 7/8″ length of cut and 2.1/2″ overall length, according to DORMER standard with a 3/8″ plain shank, solid carbide with TiAlN coating, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel and cast-iron

Additional information

Weight 0.1584 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760848081
Product number (SAP): 86036051
Ordering code ANSI: S2343/8
Gross weight – grams: 58
Connection diameter – fractional inch (DCON MS): 3/8
Connection diameter – millimeter (DCON MS): 9.53 mm
Cutting diameter – fractional inch (DC): 3/8
Cutting diameter – millimeter (DC): 9.53 mm
Depth of cut maximum – fractional inch (APMX): 7/8
Overall length – fractional inch (OAL): 2.1/2
Overall length – millimeter (OAL): 63.5 mm
ISO: S2343/8

Brand

DORMER
