DORMER S2345/64 Carbide Cutters

Product Code: S2345/64

$79.88$72.62 Ex. GST

Product Code: S2345/64 SKU S2345/64 Categories , ,
DORMER S2345/64 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

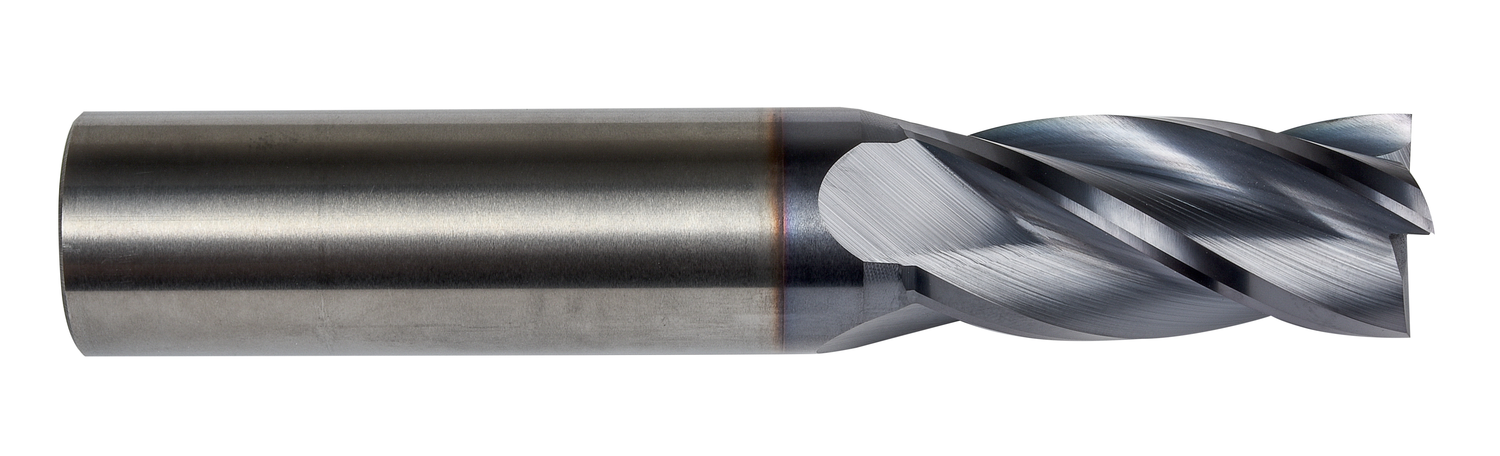

Regular length end mill with 4 flutes, diameter 5/64″ with 1/4″ length of cut and 1.1/2″ overall length, according to DORMER standard with a 1/8″ plain shank, solid carbide with TiAlN coating, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel and cast-iron

Additional information

Weight 0.0776 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760847961
Product number (SAP): 86036039
Ordering code ANSI: S2345/64
Gross weight – grams: 4
With Neck: Yes
Connection diameter – fractional inch (DCON MS): 1/8
Connection diameter – millimeter (DCON MS): 3.18 mm
Cutting diameter – fractional inch (DC): 5/64
Cutting diameter – millimeter (DC): 1.98 mm
Depth of cut maximum – fractional inch (APMX): 1/4
Overall length – fractional inch (OAL): 1.1/2
Overall length – millimeter (OAL): 38.1 mm
ISO: S2345/64

Brand

DORMER
