DORMER S2347/8 Carbide Cutters

Product Code: S2347/8

$575.56$523.24 Ex. GST

Product Code: S2347/8 SKU S2347/8 Categories , ,

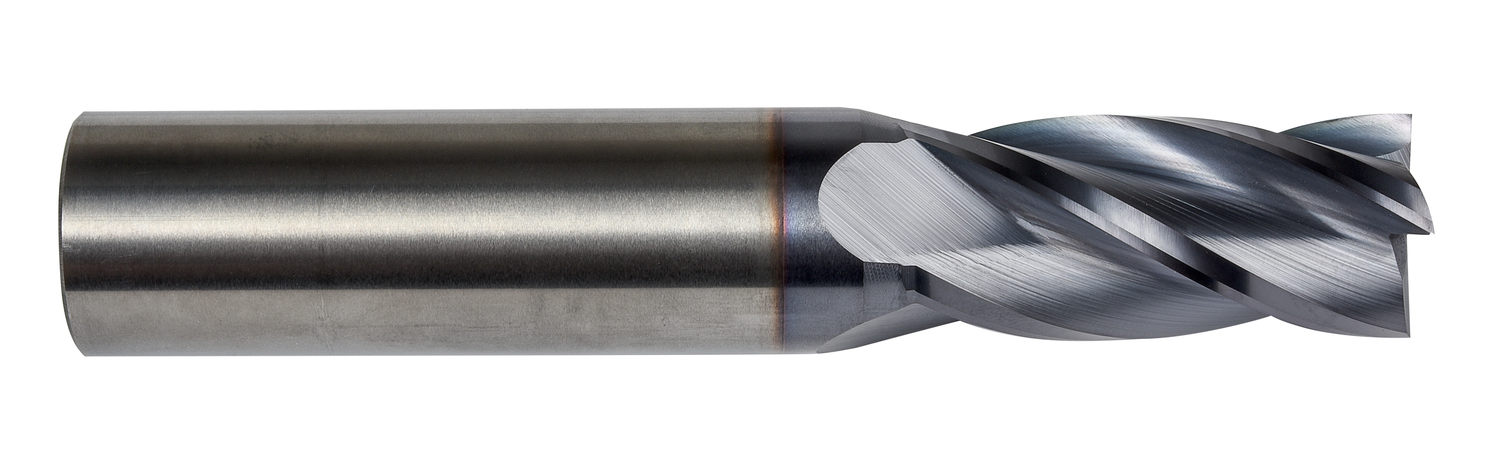

DORMER S2347/8 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Regular length end mill with 4 flutes, diameter 7/8″ with 1.1/2″ length of cut and 4″ overall length, according to DORMER standard with a 7/8″ plain shank, solid carbide with TiAlN coating, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel and cast-iron

Additional information

Weight 0.5588 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760848159
Product number (SAP): 86036058
Ordering code ANSI: S2347/8
Gross weight – grams: 359
Connection diameter – fractional inch (DCON MS): 7/8
Connection diameter – millimeter (DCON MS): 22.23 mm
Cutting diameter – fractional inch (DC): 7/8
Cutting diameter – millimeter (DC): 22.23 mm
Depth of cut maximum – fractional inch (APMX): 1.1/2
Overall length – fractional inch (OAL): 4"
Overall length – millimeter (OAL): 101.6 mm
ISO: S2347/8

Brand

DORMER
