DORMER S23514.0 Carbide Cutters

Product Code: S23514.0

$265.12$241.02 Ex. GST

Product Code: S23514.0 SKU S23514.0 Categories 10 - SC Cutters, CUTTING TOOLS (HSS & Carbide), Milling

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

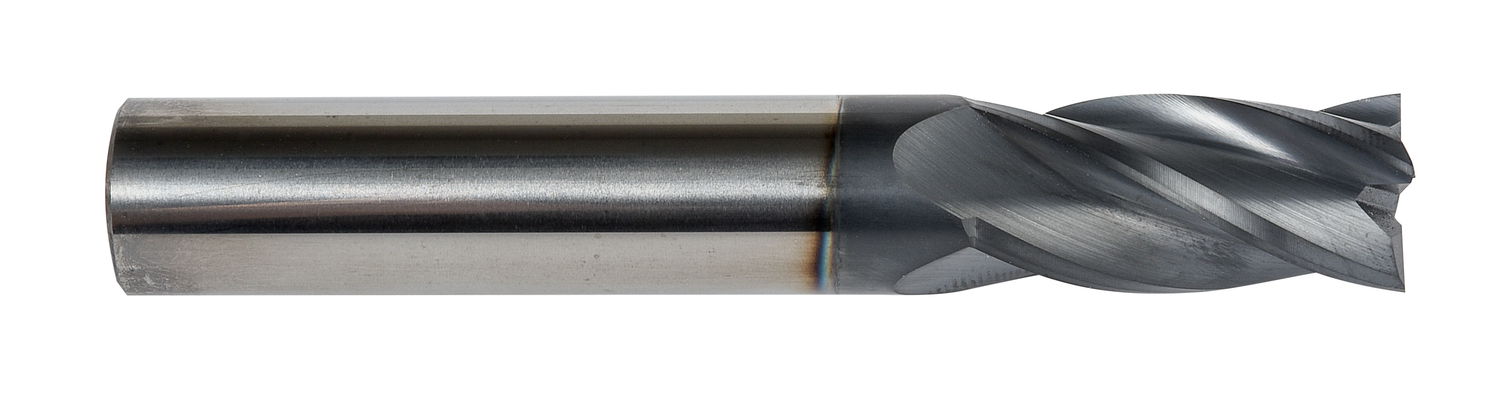

Regular length end mill with 4 flutes, diameter 14mm with 30mm length of cut and 88mm overall length, according to DORMER standard with a 14mm plain shank, solid carbide with TiAlN coating, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel and cast-iron

Additional information

Weight	0.2574 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 7320760848500 Product number (SAP): 86036093 Ordering code ANSI: S23514.0 Gross weight – grams: 128 Connection diameter – millimeter (DCON MS): 14 mm Cutting diameter – millimeter (DC): 14 mm Depth of cut maximum – millimeter (APMX): 30 mm Overall length – millimeter (OAL): 88 mm ISO: S23514.0
