DORMER S2361/8 Carbide Cutters

Product Code: S2361/8

$49.51$45.01 Ex. GST

Product Code: S2361/8 SKU S2361/8 Categories , ,
DORMER S2361/8 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

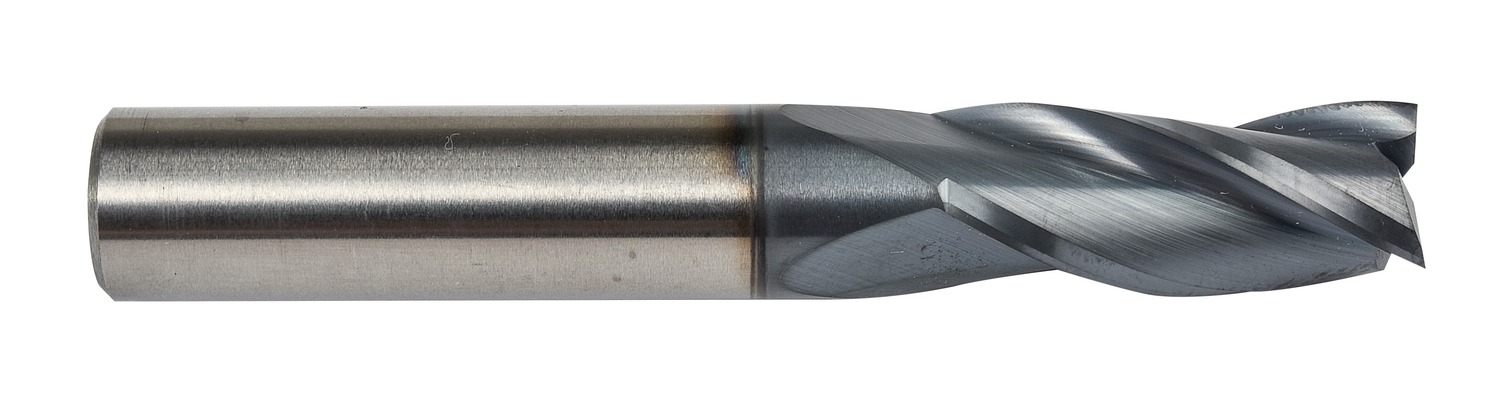

Long series end mill with 4 flutes, diameter 1/8″ with 3/4″ length of cut and 2″ overall length, according to DORMER standard with a 1/8″ plain shank, solid carbide with TiAlN coating, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel and cast-iron

Additional information

Weight 0.0481 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760848630
Product number (SAP): 86036106
Ordering code ANSI: S2361/8
Gross weight – grams: 7
Connection diameter – fractional inch (DCON MS): 1/8
Connection diameter – millimeter (DCON MS): 3.18 mm
Cutting diameter – fractional inch (DC): 1/8
Cutting diameter – millimeter (DC): 3.18 mm
Depth of cut maximum – fractional inch (APMX): 3/4
Overall length – fractional inch (OAL): 2"
Overall length – millimeter (OAL): 50.8 mm
ISO: S2361/8

Brand

DORMER
