DORMER S2363/16 Carbide Cutters

Product Code: S2363/16

$75.91$69.01 Ex. GST

Product Code: S2363/16 SKU S2363/16 Categories , ,

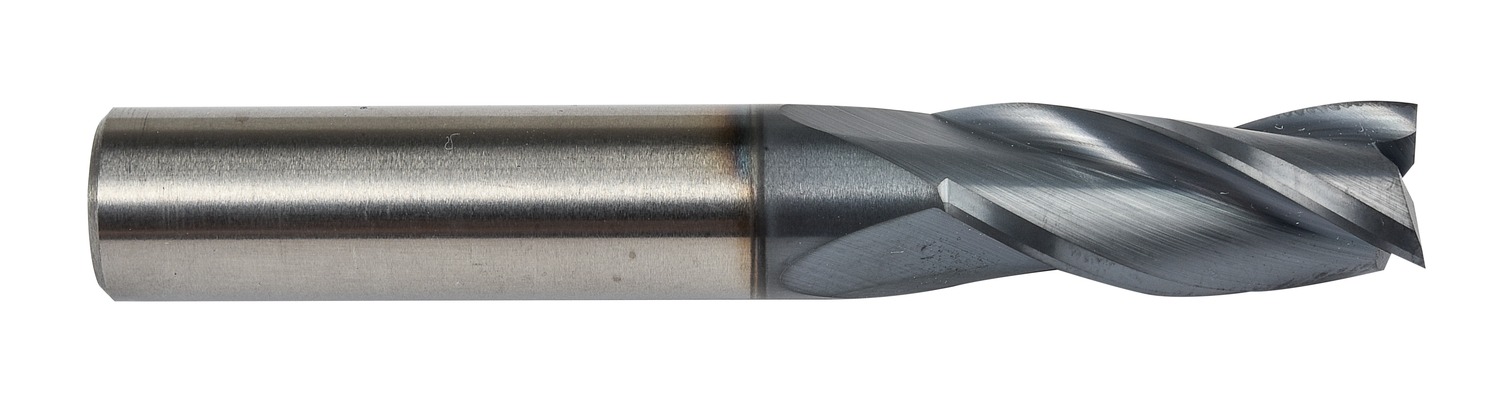

DORMER S2363/16 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Long series end mill with 4 flutes, diameter 3/16″ with 3/4″ length of cut and 2.1/2″ overall length, according to DORMER standard with a 3/16″ plain shank, solid carbide with TiAlN coating, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel and cast-iron

Additional information

Weight 0.0737 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760848647
Product number (SAP): 86036107
Ordering code ANSI: S2363/16
Gross weight – grams: 16
Connection diameter – fractional inch (DCON MS): 3/16
Connection diameter – millimeter (DCON MS): 4.76 mm
Cutting diameter – fractional inch (DC): 3/16
Cutting diameter – millimeter (DC): 4.76 mm
Depth of cut maximum – fractional inch (APMX): 3/4
Overall length – fractional inch (OAL): 2.1/2
Overall length – millimeter (OAL): 63.5 mm
ISO: S2363/16

Brand

DORMER
