DORMER S2363/4 Carbide Cutters

Product Code: S2363/4

$479.26$435.69 Ex. GST

Product Code: S2363/4 SKU S2363/4 Categories , ,
DORMER S2363/4 Carbide Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

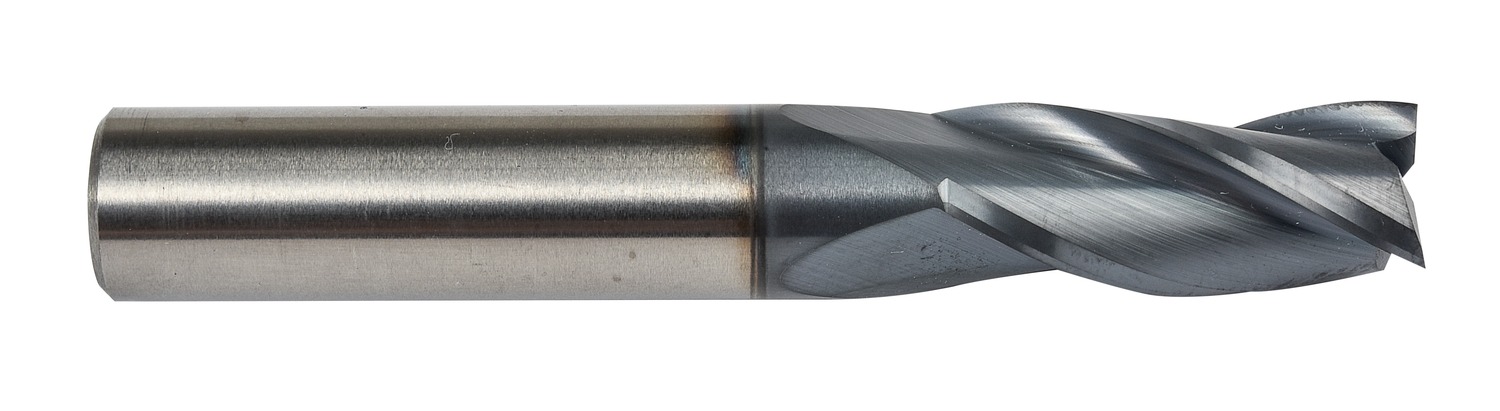

Long series end mill with 4 flutes, diameter 3/4″ with 2.1/4″ length of cut and 5″ overall length, according to DORMER standard with a 3/4″ plain shank, solid carbide with TiAlN coating, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel and cast-iron

Additional information

Weight 0.4653 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760848715
Product number (SAP): 86036114
Ordering code ANSI: S2363/4
Gross weight – grams: 451
Connection diameter – fractional inch (DCON MS): 3/4
Connection diameter – millimeter (DCON MS): 19.05 mm
Cutting diameter – fractional inch (DC): 3/4
Cutting diameter – millimeter (DC): 19.05 mm
Depth of cut maximum – fractional inch (APMX): 2.1/4
Overall length – fractional inch (OAL): 5"
Overall length – millimeter (OAL): 127 mm
ISO: S2363/4

Brand

DORMER
